9.2   Basic Operations on Graphs

Basic operations on graphs can be divided into operations on "edges" and operations on "vertices". Under the two representation methods of "adjacency matrix" and "adjacency list", the implementation methods differ.

9.2.1   Implementation Based on Adjacency Matrix

Given an undirected graph with \(n\) vertices, the various operations are implemented as shown in Figure 9-7.

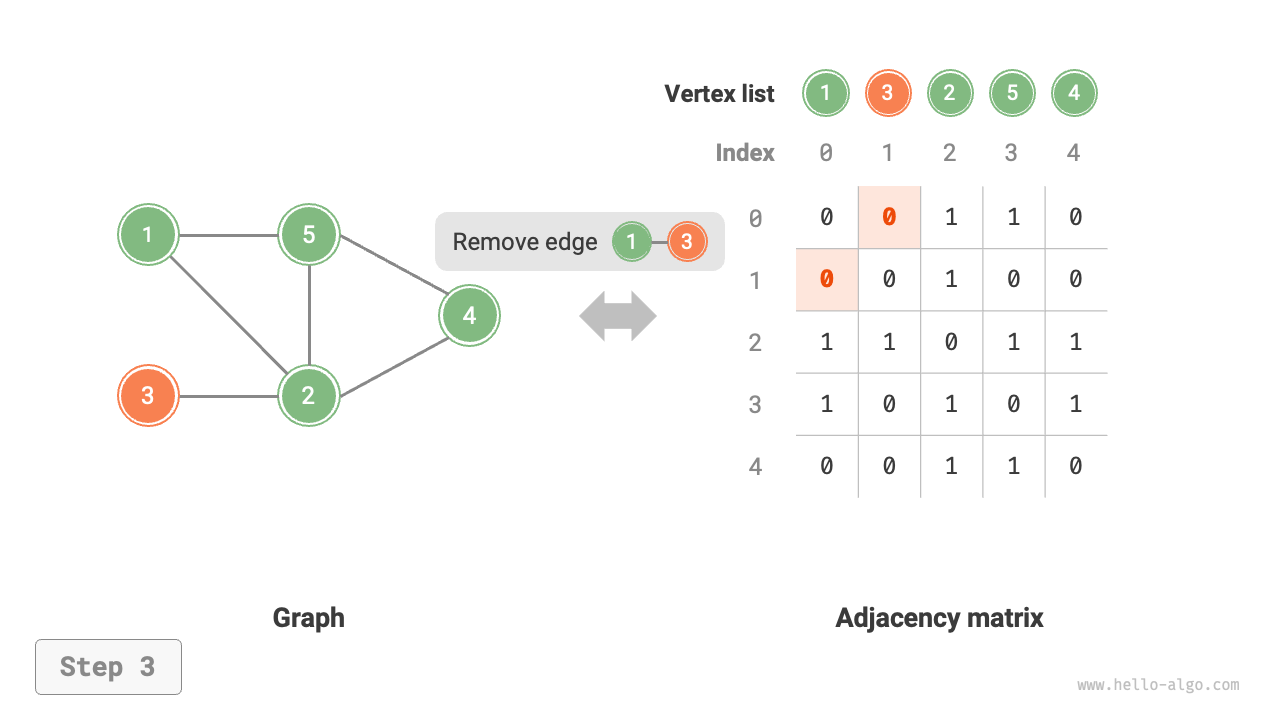

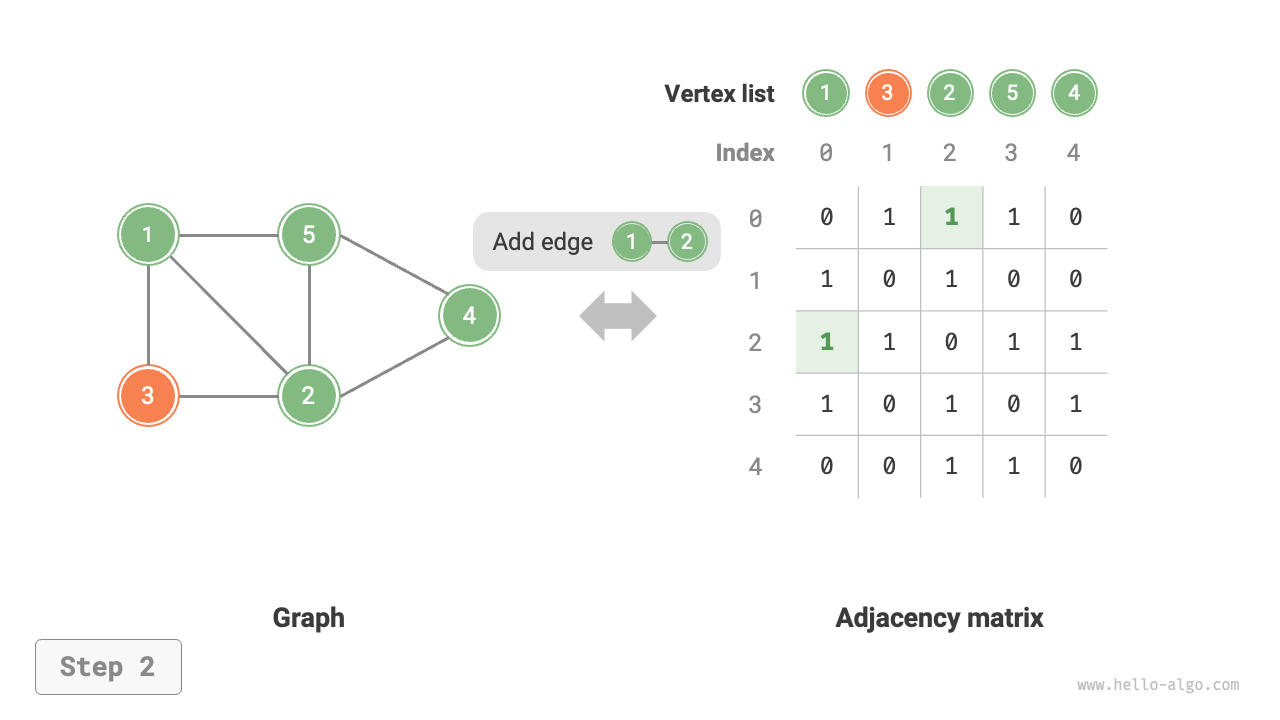

• Adding or removing an edge: Directly modify the specified edge in the adjacency matrix, using \(O(1)\) time. Since it is an undirected graph, both directions of the edge need to be updated simultaneously.

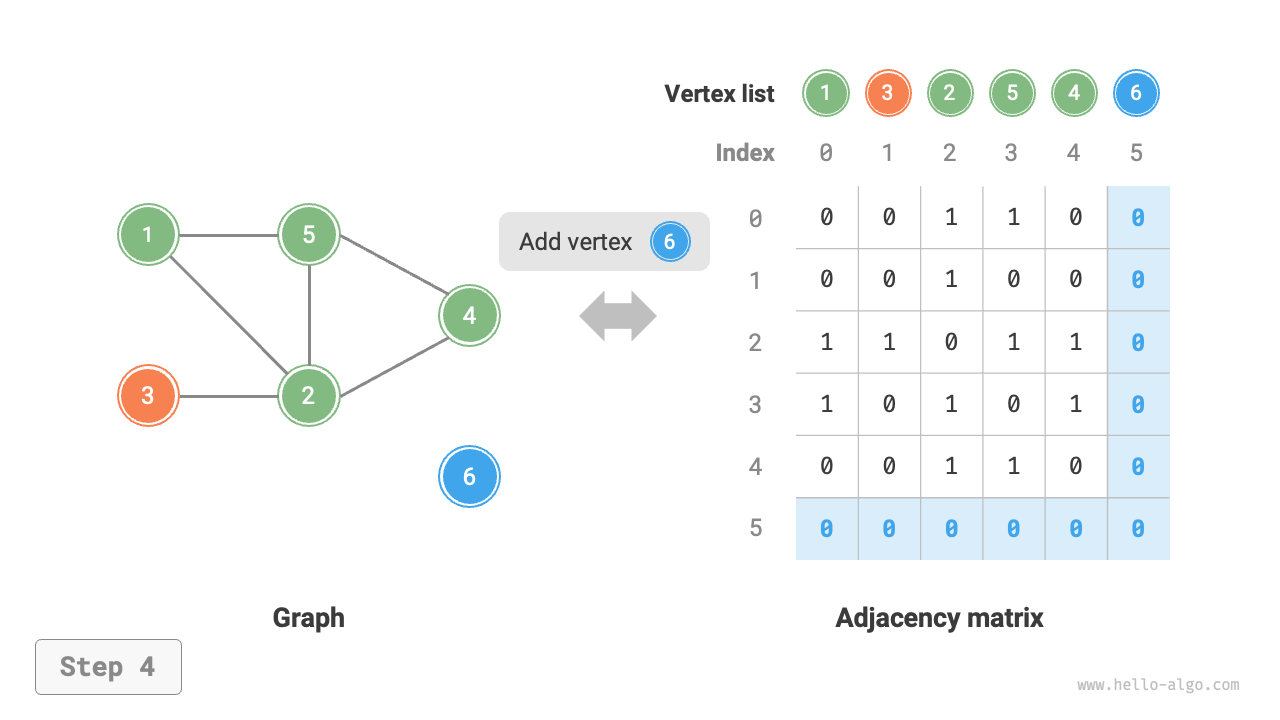

• Adding a vertex: Add a row and a column at the end of the adjacency matrix and fill them all with \(0\)s, using \(O(n)\) time.
• Removing a vertex: Delete a row and a column in the adjacency matrix. The worst case occurs when removing the first row and column, requiring \((n-1)^2\) elements to be "moved up and to the left", thus using \(O(n^2)\) time.
• Initialization: Pass in \(n\) vertices, initialize a vertex list vertices of length \(n\), using \(O(n)\) time; initialize an adjacency matrix adjMat of size \(n \times n\), using \(O(n^2)\) time.

Initialize adjacency matrixAdd an edgeRemove an edgeAdd a vertexRemove a vertex

Figure 9-7   Initialization, adding and removing edges, adding and removing vertices in adjacency matrix

The following is the implementation code for graphs represented using an adjacency matrix:

PythonC++JavaC#GoSwiftJSTSDartRustCKotlinRuby

graph_adjacency_matrix.py

class GraphAdjMat:
    """Undirected graph class based on adjacency matrix"""

    def __init__(self, vertices: list[int], edges: list[list[int]]):
        """Constructor"""
        # Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
        self.vertices: list[int] = []
        # Adjacency matrix, where the row and column indices correspond to the "vertex index"
        self.adj_mat: list[list[int]] = []
        # Add vertices
        for val in vertices:
            self.add_vertex(val)
        # Add edges
        # Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for e in edges:
            self.add_edge(e[0], e[1])

    def size(self) -> int:
        """Get the number of vertices"""
        return len(self.vertices)

    def add_vertex(self, val: int):
        """Add vertex"""
        n = self.size()
        # Add the value of the new vertex to the vertex list
        self.vertices.append(val)
        # Add a row to the adjacency matrix
        new_row = [0] * n
        self.adj_mat.append(new_row)
        # Add a column to the adjacency matrix
        for row in self.adj_mat:
            row.append(0)

    def remove_vertex(self, index: int):
        """Remove vertex"""
        if index >= self.size():
            raise IndexError()
        # Remove the vertex at index from the vertex list
        self.vertices.pop(index)
        # Remove the row at index from the adjacency matrix
        self.adj_mat.pop(index)
        # Remove the column at index from the adjacency matrix
        for row in self.adj_mat:
            row.pop(index)

    def add_edge(self, i: int, j: int):
        """Add edge"""
        # Parameters i, j correspond to the vertices element indices
        # Handle index out of bounds and equality
        if i < 0 or j < 0 or i >= self.size() or j >= self.size() or i == j:
            raise IndexError()
        # In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        self.adj_mat[i][j] = 1
        self.adj_mat[j][i] = 1

    def remove_edge(self, i: int, j: int):
        """Remove edge"""
        # Parameters i, j correspond to the vertices element indices
        # Handle index out of bounds and equality
        if i < 0 or j < 0 or i >= self.size() or j >= self.size() or i == j:
            raise IndexError()
        self.adj_mat[i][j] = 0
        self.adj_mat[j][i] = 0

    def print(self):
        """Print adjacency matrix"""
        print("Vertex list =", self.vertices)
        print("Adjacency matrix =")
        print_matrix(self.adj_mat)

graph_adjacency_matrix.cpp

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
    vector<int> vertices;       // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    vector<vector<int>> adjMat; // Adjacency matrix, where the row and column indices correspond to the "vertex index"

  public:
    /* Constructor */
    GraphAdjMat(const vector<int> &vertices, const vector<vector<int>> &edges) {
        // Add vertex
        for (int val : vertices) {
            addVertex(val);
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for (const vector<int> &edge : edges) {
            addEdge(edge[0], edge[1]);
        }
    }

    /* Get the number of vertices */
    int size() const {
        return vertices.size();
    }

    /* Add vertex */
    void addVertex(int val) {
        int n = size();
        // Add the value of the new vertex to the vertex list
        vertices.push_back(val);
        // Add a row to the adjacency matrix
        adjMat.emplace_back(vector<int>(n, 0));
        // Add a column to the adjacency matrix
        for (vector<int> &row : adjMat) {
            row.push_back(0);
        }
    }

    /* Remove vertex */
    void removeVertex(int index) {
        if (index >= size()) {
            throw out_of_range("Vertex does not exist");
        }
        // Remove the vertex at index from the vertex list
        vertices.erase(vertices.begin() + index);
        // Remove the row at index from the adjacency matrix
        adjMat.erase(adjMat.begin() + index);
        // Remove the column at index from the adjacency matrix
        for (vector<int> &row : adjMat) {
            row.erase(row.begin() + index);
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    void addEdge(int i, int j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= size() || j >= size() || i == j) {
            throw out_of_range("Vertex does not exist");
        }
        // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        adjMat[i][j] = 1;
        adjMat[j][i] = 1;
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    void removeEdge(int i, int j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= size() || j >= size() || i == j) {
            throw out_of_range("Vertex does not exist");
        }
        adjMat[i][j] = 0;
        adjMat[j][i] = 0;
    }

    /* Print adjacency matrix */
    void print() {
        cout << "Vertex list = ";
        printVector(vertices);
        cout << "Adjacency matrix =" << endl;
        printVectorMatrix(adjMat);
    }
};

graph_adjacency_matrix.java

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
    List<Integer> vertices; // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    List<List<Integer>> adjMat; // Adjacency matrix, where the row and column indices correspond to the "vertex index"

    /* Constructor */
    public GraphAdjMat(int[] vertices, int[][] edges) {
        this.vertices = new ArrayList<>();
        this.adjMat = new ArrayList<>();
        // Add vertex
        for (int val : vertices) {
            addVertex(val);
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for (int[] e : edges) {
            addEdge(e[0], e[1]);
        }
    }

    /* Get the number of vertices */
    public int size() {
        return vertices.size();
    }

    /* Add vertex */
    public void addVertex(int val) {
        int n = size();
        // Add the value of the new vertex to the vertex list
        vertices.add(val);
        // Add a row to the adjacency matrix
        List<Integer> newRow = new ArrayList<>(n);
        for (int j = 0; j < n; j++) {
            newRow.add(0);
        }
        adjMat.add(newRow);
        // Add a column to the adjacency matrix
        for (List<Integer> row : adjMat) {
            row.add(0);
        }
    }

    /* Remove vertex */
    public void removeVertex(int index) {
        if (index >= size())
            throw new IndexOutOfBoundsException();
        // Remove the vertex at index from the vertex list
        vertices.remove(index);
        // Remove the row at index from the adjacency matrix
        adjMat.remove(index);
        // Remove the column at index from the adjacency matrix
        for (List<Integer> row : adjMat) {
            row.remove(index);
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    public void addEdge(int i, int j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= size() || j >= size() || i == j)
            throw new IndexOutOfBoundsException();
        // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        adjMat.get(i).set(j, 1);
        adjMat.get(j).set(i, 1);
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    public void removeEdge(int i, int j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= size() || j >= size() || i == j)
            throw new IndexOutOfBoundsException();
        adjMat.get(i).set(j, 0);
        adjMat.get(j).set(i, 0);
    }

    /* Print adjacency matrix */
    public void print() {
        System.out.print("Vertex list = ");
        System.out.println(vertices);
        System.out.println("Adjacency matrix =");
        PrintUtil.printMatrix(adjMat);
    }
}

graph_adjacency_matrix.cs

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
    List<int> vertices;     // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    List<List<int>> adjMat; // Adjacency matrix, where the row and column indices correspond to the "vertex index"

    /* Constructor */
    public GraphAdjMat(int[] vertices, int[][] edges) {
        this.vertices = [];
        this.adjMat = [];
        // Add vertex
        foreach (int val in vertices) {
            AddVertex(val);
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        foreach (int[] e in edges) {
            AddEdge(e[0], e[1]);
        }
    }

    /* Get the number of vertices */
    int Size() {
        return vertices.Count;
    }

    /* Add vertex */
    public void AddVertex(int val) {
        int n = Size();
        // Add the value of the new vertex to the vertex list
        vertices.Add(val);
        // Add a row to the adjacency matrix
        List<int> newRow = new(n);
        for (int j = 0; j < n; j++) {
            newRow.Add(0);
        }
        adjMat.Add(newRow);
        // Add a column to the adjacency matrix
        foreach (List<int> row in adjMat) {
            row.Add(0);
        }
    }

    /* Remove vertex */
    public void RemoveVertex(int index) {
        if (index >= Size())
            throw new IndexOutOfRangeException();
        // Remove the vertex at index from the vertex list
        vertices.RemoveAt(index);
        // Remove the row at index from the adjacency matrix
        adjMat.RemoveAt(index);
        // Remove the column at index from the adjacency matrix
        foreach (List<int> row in adjMat) {
            row.RemoveAt(index);
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    public void AddEdge(int i, int j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= Size() || j >= Size() || i == j)
            throw new IndexOutOfRangeException();
        // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        adjMat[i][j] = 1;
        adjMat[j][i] = 1;
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    public void RemoveEdge(int i, int j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= Size() || j >= Size() || i == j)
            throw new IndexOutOfRangeException();
        adjMat[i][j] = 0;
        adjMat[j][i] = 0;
    }

    /* Print adjacency matrix */
    public void Print() {
        Console.Write("Vertex list = ");
        PrintUtil.PrintList(vertices);
        Console.WriteLine("Adjacency matrix =");
        PrintUtil.PrintMatrix(adjMat);
    }
}

graph_adjacency_matrix.go

/* Undirected graph class based on adjacency matrix */
type graphAdjMat struct {
    // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    vertices []int
    // Adjacency matrix, where the row and column indices correspond to the "vertex index"
    adjMat [][]int
}

/* Constructor */
func newGraphAdjMat(vertices []int, edges [][]int) *graphAdjMat {
    // Add vertex
    n := len(vertices)
    adjMat := make([][]int, n)
    for i := range adjMat {
        adjMat[i] = make([]int, n)
    }
    // Initialize graph
    g := &graphAdjMat{
        vertices: vertices,
        adjMat:   adjMat,
    }
    // Add edge
    // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
    for i := range edges {
        g.addEdge(edges[i][0], edges[i][1])
    }
    return g
}

/* Get the number of vertices */
func (g *graphAdjMat) size() int {
    return len(g.vertices)
}

/* Add vertex */
func (g *graphAdjMat) addVertex(val int) {
    n := g.size()
    // Add the value of the new vertex to the vertex list
    g.vertices = append(g.vertices, val)
    // Add a row to the adjacency matrix
    newRow := make([]int, n)
    g.adjMat = append(g.adjMat, newRow)
    // Add a column to the adjacency matrix
    for i := range g.adjMat {
        g.adjMat[i] = append(g.adjMat[i], 0)
    }
}

/* Remove vertex */
func (g *graphAdjMat) removeVertex(index int) {
    if index >= g.size() {
        return
    }
    // Remove the vertex at index from the vertex list
    g.vertices = append(g.vertices[:index], g.vertices[index+1:]...)
    // Remove the row at index from the adjacency matrix
    g.adjMat = append(g.adjMat[:index], g.adjMat[index+1:]...)
    // Remove the column at index from the adjacency matrix
    for i := range g.adjMat {
        g.adjMat[i] = append(g.adjMat[i][:index], g.adjMat[i][index+1:]...)
    }
}

/* Add edge */
// Parameters i, j correspond to the vertices element indices
func (g *graphAdjMat) addEdge(i, j int) {
    // Handle index out of bounds and equality
    if i < 0 || j < 0 || i >= g.size() || j >= g.size() || i == j {
        fmt.Errorf("%s", "Index Out Of Bounds Exception")
    }
    // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
    g.adjMat[i][j] = 1
    g.adjMat[j][i] = 1
}

/* Remove edge */
// Parameters i, j correspond to the vertices element indices
func (g *graphAdjMat) removeEdge(i, j int) {
    // Handle index out of bounds and equality
    if i < 0 || j < 0 || i >= g.size() || j >= g.size() || i == j {
        fmt.Errorf("%s", "Index Out Of Bounds Exception")
    }
    g.adjMat[i][j] = 0
    g.adjMat[j][i] = 0
}

/* Print adjacency matrix */
func (g *graphAdjMat) print() {
    fmt.Printf("\tVertex list = %v\n", g.vertices)
    fmt.Printf("\tAdjacency matrix = \n")
    for i := range g.adjMat {
        fmt.Printf("\t\t\t%v\n", g.adjMat[i])
    }
}

graph_adjacency_matrix.swift

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
    private var vertices: [Int] // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    private var adjMat: [[Int]] // Adjacency matrix, where the row and column indices correspond to the "vertex index"

    /* Constructor */
    init(vertices: [Int], edges: [[Int]]) {
        self.vertices = []
        adjMat = []
        // Add vertex
        for val in vertices {
            addVertex(val: val)
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for e in edges {
            addEdge(i: e[0], j: e[1])
        }
    }

    /* Get the number of vertices */
    func size() -> Int {
        vertices.count
    }

    /* Add vertex */
    func addVertex(val: Int) {
        let n = size()
        // Add the value of the new vertex to the vertex list
        vertices.append(val)
        // Add a row to the adjacency matrix
        let newRow = Array(repeating: 0, count: n)
        adjMat.append(newRow)
        // Add a column to the adjacency matrix
        for i in adjMat.indices {
            adjMat[i].append(0)
        }
    }

    /* Remove vertex */
    func removeVertex(index: Int) {
        if index >= size() {
            fatalError("Out of bounds")
        }
        // Remove the vertex at index from the vertex list
        vertices.remove(at: index)
        // Remove the row at index from the adjacency matrix
        adjMat.remove(at: index)
        // Remove the column at index from the adjacency matrix
        for i in adjMat.indices {
            adjMat[i].remove(at: index)
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    func addEdge(i: Int, j: Int) {
        // Handle index out of bounds and equality
        if i < 0 || j < 0 || i >= size() || j >= size() || i == j {
            fatalError("Out of bounds")
        }
        // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        adjMat[i][j] = 1
        adjMat[j][i] = 1
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    func removeEdge(i: Int, j: Int) {
        // Handle index out of bounds and equality
        if i < 0 || j < 0 || i >= size() || j >= size() || i == j {
            fatalError("Out of bounds")
        }
        adjMat[i][j] = 0
        adjMat[j][i] = 0
    }

    /* Print adjacency matrix */
    func print() {
        Swift.print("Vertex list = ", terminator: "")
        Swift.print(vertices)
        Swift.print("Adjacency matrix =")
        PrintUtil.printMatrix(matrix: adjMat)
    }
}

graph_adjacency_matrix.js

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
    vertices; // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    adjMat; // Adjacency matrix, where the row and column indices correspond to the "vertex index"

    /* Constructor */
    constructor(vertices, edges) {
        this.vertices = [];
        this.adjMat = [];
        // Add vertex
        for (const val of vertices) {
            this.addVertex(val);
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for (const e of edges) {
            this.addEdge(e[0], e[1]);
        }
    }

    /* Get the number of vertices */
    size() {
        return this.vertices.length;
    }

    /* Add vertex */
    addVertex(val) {
        const n = this.size();
        // Add the value of the new vertex to the vertex list
        this.vertices.push(val);
        // Add a row to the adjacency matrix
        const newRow = [];
        for (let j = 0; j < n; j++) {
            newRow.push(0);
        }
        this.adjMat.push(newRow);
        // Add a column to the adjacency matrix
        for (const row of this.adjMat) {
            row.push(0);
        }
    }

    /* Remove vertex */
    removeVertex(index) {
        if (index >= this.size()) {
            throw new RangeError('Index Out Of Bounds Exception');
        }
        // Remove the vertex at index from the vertex list
        this.vertices.splice(index, 1);

        // Remove the row at index from the adjacency matrix
        this.adjMat.splice(index, 1);
        // Remove the column at index from the adjacency matrix
        for (const row of this.adjMat) {
            row.splice(index, 1);
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    addEdge(i, j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= this.size() || j >= this.size() || i === j) {
            throw new RangeError('Index Out Of Bounds Exception');
        }
        // In undirected graph, adjacency matrix is symmetric about main diagonal, i.e., satisfies (i, j) === (j, i)
        this.adjMat[i][j] = 1;
        this.adjMat[j][i] = 1;
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    removeEdge(i, j) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= this.size() || j >= this.size() || i === j) {
            throw new RangeError('Index Out Of Bounds Exception');
        }
        this.adjMat[i][j] = 0;
        this.adjMat[j][i] = 0;
    }

    /* Print adjacency matrix */
    print() {
        console.log('Vertex list = ', this.vertices);
        console.log('Adjacency matrix =', this.adjMat);
    }
}

graph_adjacency_matrix.ts

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
    vertices: number[]; // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    adjMat: number[][]; // Adjacency matrix, where the row and column indices correspond to the "vertex index"

    /* Constructor */
    constructor(vertices: number[], edges: number[][]) {
        this.vertices = [];
        this.adjMat = [];
        // Add vertex
        for (const val of vertices) {
            this.addVertex(val);
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for (const e of edges) {
            this.addEdge(e[0], e[1]);
        }
    }

    /* Get the number of vertices */
    size(): number {
        return this.vertices.length;
    }

    /* Add vertex */
    addVertex(val: number): void {
        const n: number = this.size();
        // Add the value of the new vertex to the vertex list
        this.vertices.push(val);
        // Add a row to the adjacency matrix
        const newRow: number[] = [];
        for (let j: number = 0; j < n; j++) {
            newRow.push(0);
        }
        this.adjMat.push(newRow);
        // Add a column to the adjacency matrix
        for (const row of this.adjMat) {
            row.push(0);
        }
    }

    /* Remove vertex */
    removeVertex(index: number): void {
        if (index >= this.size()) {
            throw new RangeError('Index Out Of Bounds Exception');
        }
        // Remove the vertex at index from the vertex list
        this.vertices.splice(index, 1);

        // Remove the row at index from the adjacency matrix
        this.adjMat.splice(index, 1);
        // Remove the column at index from the adjacency matrix
        for (const row of this.adjMat) {
            row.splice(index, 1);
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    addEdge(i: number, j: number): void {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= this.size() || j >= this.size() || i === j) {
            throw new RangeError('Index Out Of Bounds Exception');
        }
        // In undirected graph, adjacency matrix is symmetric about main diagonal, i.e., satisfies (i, j) === (j, i)
        this.adjMat[i][j] = 1;
        this.adjMat[j][i] = 1;
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    removeEdge(i: number, j: number): void {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= this.size() || j >= this.size() || i === j) {
            throw new RangeError('Index Out Of Bounds Exception');
        }
        this.adjMat[i][j] = 0;
        this.adjMat[j][i] = 0;
    }

    /* Print adjacency matrix */
    print(): void {
        console.log('Vertex list = ', this.vertices);
        console.log('Adjacency matrix =', this.adjMat);
    }
}

graph_adjacency_matrix.dart

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat {
  List<int> vertices = []; // Vertex elements, elements represent "vertex values", indices represent "vertex indices"
  List<List<int>> adjMat = []; // Adjacency matrix, where the row and column indices correspond to the "vertex index"

  /* Constructor */
  GraphAdjMat(List<int> vertices, List<List<int>> edges) {
    this.vertices = [];
    this.adjMat = [];
    // Add vertex
    for (int val in vertices) {
      addVertex(val);
    }
    // Add edge
    // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
    for (List<int> e in edges) {
      addEdge(e[0], e[1]);
    }
  }

  /* Get the number of vertices */
  int size() {
    return vertices.length;
  }

  /* Add vertex */
  void addVertex(int val) {
    int n = size();
    // Add the value of the new vertex to the vertex list
    vertices.add(val);
    // Add a row to the adjacency matrix
    List<int> newRow = List.filled(n, 0, growable: true);
    adjMat.add(newRow);
    // Add a column to the adjacency matrix
    for (List<int> row in adjMat) {
      row.add(0);
    }
  }

  /* Remove vertex */
  void removeVertex(int index) {
    if (index >= size()) {
      throw IndexError;
    }
    // Remove the vertex at index from the vertex list
    vertices.removeAt(index);
    // Remove the row at index from the adjacency matrix
    adjMat.removeAt(index);
    // Remove the column at index from the adjacency matrix
    for (List<int> row in adjMat) {
      row.removeAt(index);
    }
  }

  /* Add edge */
  // Parameters i, j correspond to the vertices element indices
  void addEdge(int i, int j) {
    // Handle index out of bounds and equality
    if (i < 0 || j < 0 || i >= size() || j >= size() || i == j) {
      throw IndexError;
    }
    // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
    adjMat[i][j] = 1;
    adjMat[j][i] = 1;
  }

  /* Remove edge */
  // Parameters i, j correspond to the vertices element indices
  void removeEdge(int i, int j) {
    // Handle index out of bounds and equality
    if (i < 0 || j < 0 || i >= size() || j >= size() || i == j) {
      throw IndexError;
    }
    adjMat[i][j] = 0;
    adjMat[j][i] = 0;
  }

  /* Print adjacency matrix */
  void printAdjMat() {
    print("Vertex list = $vertices");
    print("Adjacency matrix = ");
    printMatrix(adjMat);
  }
}

graph_adjacency_matrix.rs

/* Undirected graph type based on adjacency matrix */
pub struct GraphAdjMat {
    // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    pub vertices: Vec<i32>,
    // Adjacency matrix, where the row and column indices correspond to the "vertex index"
    pub adj_mat: Vec<Vec<i32>>,
}

impl GraphAdjMat {
    /* Constructor */
    pub fn new(vertices: Vec<i32>, edges: Vec<[usize; 2]>) -> Self {
        let mut graph = GraphAdjMat {
            vertices: vec![],
            adj_mat: vec![],
        };
        // Add vertex
        for val in vertices {
            graph.add_vertex(val);
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for edge in edges {
            graph.add_edge(edge[0], edge[1])
        }

        graph
    }

    /* Get the number of vertices */
    pub fn size(&self) -> usize {
        self.vertices.len()
    }

    /* Add vertex */
    pub fn add_vertex(&mut self, val: i32) {
        let n = self.size();
        // Add the value of the new vertex to the vertex list
        self.vertices.push(val);
        // Add a row to the adjacency matrix
        self.adj_mat.push(vec![0; n]);
        // Add a column to the adjacency matrix
        for row in self.adj_mat.iter_mut() {
            row.push(0);
        }
    }

    /* Remove vertex */
    pub fn remove_vertex(&mut self, index: usize) {
        if index >= self.size() {
            panic!("index error")
        }
        // Remove the vertex at index from the vertex list
        self.vertices.remove(index);
        // Remove the row at index from the adjacency matrix
        self.adj_mat.remove(index);
        // Remove the column at index from the adjacency matrix
        for row in self.adj_mat.iter_mut() {
            row.remove(index);
        }
    }

    /* Add edge */
    pub fn add_edge(&mut self, i: usize, j: usize) {
        // Parameters i, j correspond to the vertices element indices
        // Handle index out of bounds and equality
        if i >= self.size() || j >= self.size() || i == j {
            panic!("index error")
        }
        // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        self.adj_mat[i][j] = 1;
        self.adj_mat[j][i] = 1;
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    pub fn remove_edge(&mut self, i: usize, j: usize) {
        // Parameters i, j correspond to the vertices element indices
        // Handle index out of bounds and equality
        if i >= self.size() || j >= self.size() || i == j {
            panic!("index error")
        }
        self.adj_mat[i][j] = 0;
        self.adj_mat[j][i] = 0;
    }

    /* Print adjacency matrix */
    pub fn print(&self) {
        println!("Vertex list = {:?}", self.vertices);
        println!("Adjacency matrix =");
        println!("[");
        for row in &self.adj_mat {
            println!("  {:?},", row);
        }
        println!("]")
    }
}

graph_adjacency_matrix.c

/* Undirected graph structure based on adjacency matrix */
typedef struct {
    int vertices[MAX_SIZE];
    int adjMat[MAX_SIZE][MAX_SIZE];
    int size;
} GraphAdjMat;

/* Constructor */
GraphAdjMat *newGraphAdjMat() {
    GraphAdjMat *graph = (GraphAdjMat *)malloc(sizeof(GraphAdjMat));
    graph->size = 0;
    for (int i = 0; i < MAX_SIZE; i++) {
        for (int j = 0; j < MAX_SIZE; j++) {
            graph->adjMat[i][j] = 0;
        }
    }
    return graph;
}

/* Destructor */
void delGraphAdjMat(GraphAdjMat *graph) {
    free(graph);
}

/* Add vertex */
void addVertex(GraphAdjMat *graph, int val) {
    if (graph->size == MAX_SIZE) {
        fprintf(stderr, "Graph vertex count has reached maximum\n");
        return;
    }
    // Add nth vertex and zero nth row and column
    int n = graph->size;
    graph->vertices[n] = val;
    for (int i = 0; i <= n; i++) {
        graph->adjMat[n][i] = graph->adjMat[i][n] = 0;
    }
    graph->size++;
}

/* Remove vertex */
void removeVertex(GraphAdjMat *graph, int index) {
    if (index < 0 || index >= graph->size) {
        fprintf(stderr, "Vertex index out of bounds\n");
        return;
    }
    // Remove the vertex at index from the vertex list
    for (int i = index; i < graph->size - 1; i++) {
        graph->vertices[i] = graph->vertices[i + 1];
    }
    // Remove the row at index from the adjacency matrix
    for (int i = index; i < graph->size - 1; i++) {
        for (int j = 0; j < graph->size; j++) {
            graph->adjMat[i][j] = graph->adjMat[i + 1][j];
        }
    }
    // Remove the column at index from the adjacency matrix
    for (int i = 0; i < graph->size; i++) {
        for (int j = index; j < graph->size - 1; j++) {
            graph->adjMat[i][j] = graph->adjMat[i][j + 1];
        }
    }
    graph->size--;
}

/* Add edge */
// Parameters i, j correspond to the vertices element indices
void addEdge(GraphAdjMat *graph, int i, int j) {
    if (i < 0 || j < 0 || i >= graph->size || j >= graph->size || i == j) {
        fprintf(stderr, "Edge index out of bounds or equal\n");
        return;
    }
    graph->adjMat[i][j] = 1;
    graph->adjMat[j][i] = 1;
}

/* Remove edge */
// Parameters i, j correspond to the vertices element indices
void removeEdge(GraphAdjMat *graph, int i, int j) {
    if (i < 0 || j < 0 || i >= graph->size || j >= graph->size || i == j) {
        fprintf(stderr, "Edge index out of bounds or equal\n");
        return;
    }
    graph->adjMat[i][j] = 0;
    graph->adjMat[j][i] = 0;
}

/* Print adjacency matrix */
void printGraphAdjMat(GraphAdjMat *graph) {
    printf("Vertex list = ");
    printArray(graph->vertices, graph->size);
    printf("Adjacency matrix =\n");
    for (int i = 0; i < graph->size; i++) {
        printArray(graph->adjMat[i], graph->size);
    }
}

graph_adjacency_matrix.kt

/* Undirected graph class based on adjacency matrix */
class GraphAdjMat(vertices: IntArray, edges: Array<IntArray>) {
    val vertices = mutableListOf<Int>() // Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    val adjMat = mutableListOf<MutableList<Int>>() // Adjacency matrix, where the row and column indices correspond to the "vertex index"

    /* Constructor */
    init {
        // Add vertex
        for (vertex in vertices) {
            addVertex(vertex)
        }
        // Add edge
        // Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
        for (edge in edges) {
            addEdge(edge[0], edge[1])
        }
    }

    /* Get the number of vertices */
    fun size(): Int {
        return vertices.size
    }

    /* Add vertex */
    fun addVertex(_val: Int) {
        val n = size()
        // Add the value of the new vertex to the vertex list
        vertices.add(_val)
        // Add a row to the adjacency matrix
        val newRow = mutableListOf<Int>()
        for (j in 0..<n) {
            newRow.add(0)
        }
        adjMat.add(newRow)
        // Add a column to the adjacency matrix
        for (row in adjMat) {
            row.add(0)
        }
    }

    /* Remove vertex */
    fun removeVertex(index: Int) {
        if (index >= size())
            throw IndexOutOfBoundsException()
        // Remove the vertex at index from the vertex list
        vertices.removeAt(index)
        // Remove the row at index from the adjacency matrix
        adjMat.removeAt(index)
        // Remove the column at index from the adjacency matrix
        for (row in adjMat) {
            row.removeAt(index)
        }
    }

    /* Add edge */
    // Parameters i, j correspond to the vertices element indices
    fun addEdge(i: Int, j: Int) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= size() || j >= size() || i == j)
            throw IndexOutOfBoundsException()
        // In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
        adjMat[i][j] = 1
        adjMat[j][i] = 1
    }

    /* Remove edge */
    // Parameters i, j correspond to the vertices element indices
    fun removeEdge(i: Int, j: Int) {
        // Handle index out of bounds and equality
        if (i < 0 || j < 0 || i >= size() || j >= size() || i == j)
            throw IndexOutOfBoundsException()
        adjMat[i][j] = 0
        adjMat[j][i] = 0
    }

    /* Print adjacency matrix */
    fun print() {
        print("Vertex list = ")
        println(vertices)
        println("Adjacency matrix =")
        printMatrix(adjMat)
    }
}

graph_adjacency_matrix.rb

### Undirected graph class based on adjacency matrix ###
class GraphAdjMat
  def initialize(vertices, edges)
    ### Constructor ###
    # Vertex list, where the element represents the "vertex value" and the index represents the "vertex index"
    @vertices = []
    # Adjacency matrix, where the row and column indices correspond to the "vertex index"
    @adj_mat = []
    # Add vertex
    vertices.each { |val| add_vertex(val) }
    # Add edge
    # Note that the edges elements represent vertex indices, i.e., corresponding to the vertices element indices
    edges.each { |e| add_edge(e[0], e[1]) }
  end

  ### Get number of vertices ###
  def size
    @vertices.length
  end

  ### Add vertex ###
  def add_vertex(val)
    n = size
    # Add the value of the new vertex to the vertex list
    @vertices << val
    # Add a row to the adjacency matrix
    new_row = Array.new(n, 0)
    @adj_mat << new_row
    # Add a column to the adjacency matrix
    @adj_mat.each { |row| row << 0 }
  end

  ### Delete vertex ###
  def remove_vertex(index)
    raise IndexError if index >= size

    # Remove the vertex at index from the vertex list
    @vertices.delete_at(index)
    # Remove the row at index from the adjacency matrix
    @adj_mat.delete_at(index)
    # Remove the column at index from the adjacency matrix
    @adj_mat.each { |row| row.delete_at(index) }
  end

  ### Add edge ###
  def add_edge(i, j)
    # Parameters i, j correspond to the vertices element indices
    # Handle index out of bounds and equality
    if i < 0 || j < 0 || i >= size || j >= size || i == j
      raise IndexError
    end
    # In an undirected graph, the adjacency matrix is symmetric about the main diagonal, i.e., (i, j) == (j, i)
    @adj_mat[i][j] = 1
    @adj_mat[j][i] = 1
  end

  ### Delete edge ###
  def remove_edge(i, j)
    # Parameters i, j correspond to the vertices element indices
    # Handle index out of bounds and equality
    if i < 0 || j < 0 || i >= size || j >= size || i == j
      raise IndexError
    end
    @adj_mat[i][j] = 0
    @adj_mat[j][i] = 0
  end

  ### Print adjacency matrix ###
  def __print__
    puts "Vertex list = #{@vertices}"
    puts 'Adjacency matrix ='
    print_matrix(@adj_mat)
  end
end

9.2.2   Implementation Based on Adjacency List

Given an undirected graph with a total of \(n\) vertices and \(m\) edges, the various operations can be implemented as shown in Figure 9-8.

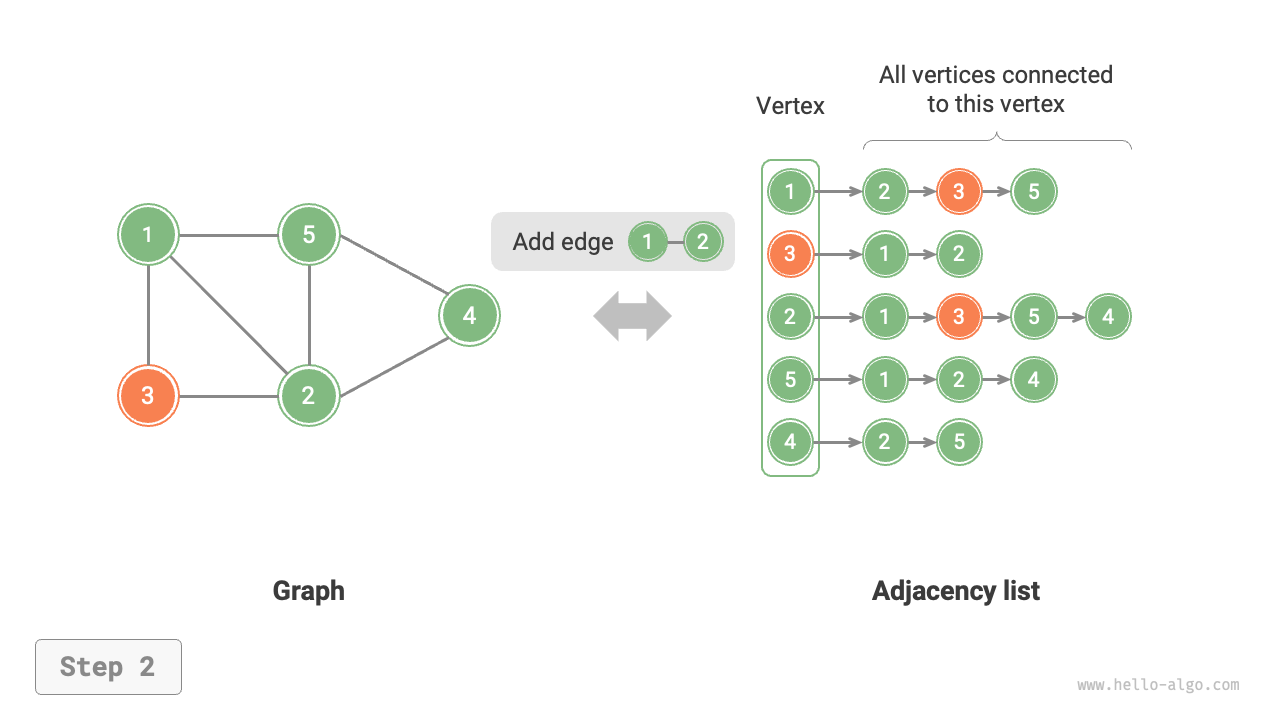

• Adding an edge: Add the edge at the end of the corresponding vertex's linked list, using \(O(1)\) time. Since it is an undirected graph, edges in both directions need to be added simultaneously.

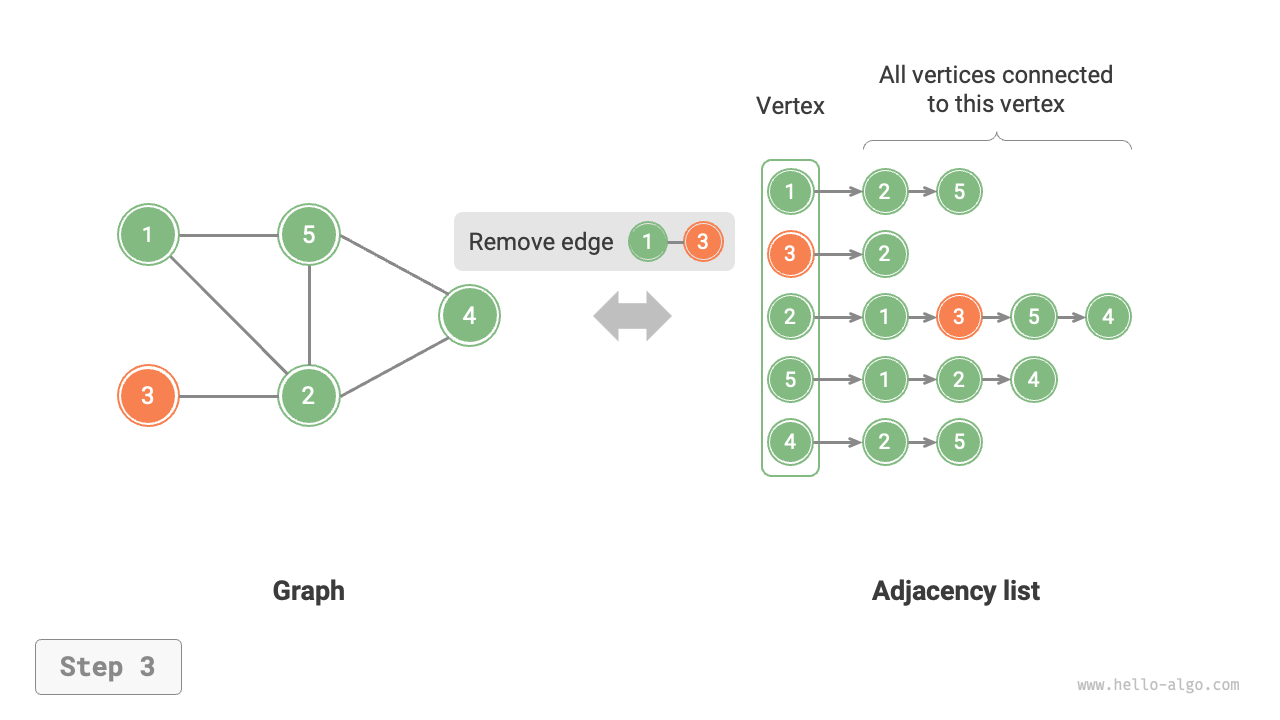

• Removing an edge: Find and remove the specified edge in the corresponding vertex's linked list, using \(O(m)\) time. In an undirected graph, edges in both directions need to be removed simultaneously.
• Adding a vertex: Add a linked list in the adjacency list and set the new vertex as the head node of the list, using \(O(1)\) time.

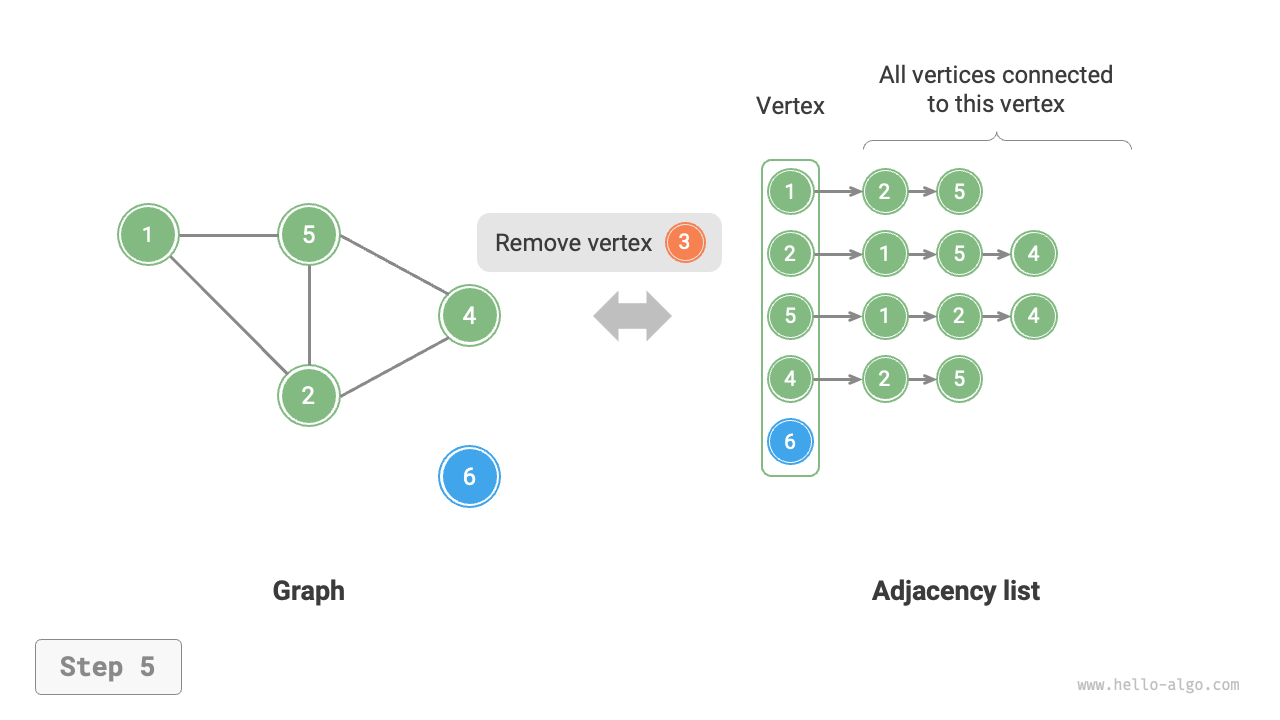

• Removing a vertex: Traverse the entire adjacency list and remove all edges containing the specified vertex, using \(O(n + m)\) time.
• Initialization: Create \(n\) vertices and \(2m\) edges in the adjacency list, using \(O(n + m)\) time.

Initialize adjacency listAdd an edgeRemove an edgeAdd a vertexRemove a vertex

Figure 9-8   Initialization, adding and removing edges, adding and removing vertices in adjacency list

The following is the adjacency list code implementation. Compared to Figure 9-8, the actual code has the following differences.

• For convenience in adding and removing vertices, and to simplify the code, we use lists (dynamic arrays) instead of linked lists.
• A hash table is used to store the adjacency list, where key is the vertex instance and value is the list (linked list) of adjacent vertices for that vertex.

Additionally, we use the Vertex class to represent vertices in the adjacency list. The reason for this is: if we used list indices to distinguish different vertices as with adjacency matrices, then to delete the vertex at index \(i\), we would need to traverse the entire adjacency list and decrement all indices greater than \(i\) by \(1\), which is very inefficient. However, if each vertex is a unique Vertex instance, deleting a vertex does not require modifying other vertices.

PythonC++JavaC#GoSwiftJSTSDartRustCKotlinRuby

graph_adjacency_list.py

class GraphAdjList:
    """Undirected graph class based on adjacency list"""

    def __init__(self, edges: list[list[Vertex]]):
        """Constructor"""
        # Adjacency list, key: vertex, value: all adjacent vertices of that vertex
        self.adj_list = dict[Vertex, list[Vertex]]()
        # Add all vertices and edges
        for edge in edges:
            self.add_vertex(edge[0])
            self.add_vertex(edge[1])
            self.add_edge(edge[0], edge[1])

    def size(self) -> int:
        """Get the number of vertices"""
        return len(self.adj_list)

    def add_edge(self, vet1: Vertex, vet2: Vertex):
        """Add edge"""
        if vet1 not in self.adj_list or vet2 not in self.adj_list or vet1 == vet2:
            raise ValueError()
        # Add edge vet1 - vet2
        self.adj_list[vet1].append(vet2)
        self.adj_list[vet2].append(vet1)

    def remove_edge(self, vet1: Vertex, vet2: Vertex):
        """Remove edge"""
        if vet1 not in self.adj_list or vet2 not in self.adj_list or vet1 == vet2:
            raise ValueError()
        # Remove edge vet1 - vet2
        self.adj_list[vet1].remove(vet2)
        self.adj_list[vet2].remove(vet1)

    def add_vertex(self, vet: Vertex):
        """Add vertex"""
        if vet in self.adj_list:
            return
        # Add a new linked list in the adjacency list
        self.adj_list[vet] = []

    def remove_vertex(self, vet: Vertex):
        """Remove vertex"""
        if vet not in self.adj_list:
            raise ValueError()
        # Remove the linked list corresponding to vertex vet in the adjacency list
        self.adj_list.pop(vet)
        # Traverse the linked lists of other vertices and remove all edges containing vet
        for vertex in self.adj_list:
            if vet in self.adj_list[vertex]:
                self.adj_list[vertex].remove(vet)

    def print(self):
        """Print adjacency list"""
        print("Adjacency list =")
        for vertex in self.adj_list:
            tmp = [v.val for v in self.adj_list[vertex]]
            print(f"{vertex.val}: {tmp},")

graph_adjacency_list.cpp

/* Undirected graph class based on adjacency list */
class GraphAdjList {
  public:
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    unordered_map<Vertex *, vector<Vertex *>> adjList;

    /* Remove specified node from vector */
    void remove(vector<Vertex *> &vec, Vertex *vet) {
        for (int i = 0; i < vec.size(); i++) {
            if (vec[i] == vet) {
                vec.erase(vec.begin() + i);
                break;
            }
        }
    }

    /* Constructor */
    GraphAdjList(const vector<vector<Vertex *>> &edges) {
        // Add all vertices and edges
        for (const vector<Vertex *> &edge : edges) {
            addVertex(edge[0]);
            addVertex(edge[1]);
            addEdge(edge[0], edge[1]);
        }
    }

    /* Get the number of vertices */
    int size() {
        return adjList.size();
    }

    /* Add edge */
    void addEdge(Vertex *vet1, Vertex *vet2) {
        if (!adjList.count(vet1) || !adjList.count(vet2) || vet1 == vet2)
            throw invalid_argument("Vertex does not exist");
        // Add edge vet1 - vet2
        adjList[vet1].push_back(vet2);
        adjList[vet2].push_back(vet1);
    }

    /* Remove edge */
    void removeEdge(Vertex *vet1, Vertex *vet2) {
        if (!adjList.count(vet1) || !adjList.count(vet2) || vet1 == vet2)
            throw invalid_argument("Vertex does not exist");
        // Remove edge vet1 - vet2
        remove(adjList[vet1], vet2);
        remove(adjList[vet2], vet1);
    }

    /* Add vertex */
    void addVertex(Vertex *vet) {
        if (adjList.count(vet))
            return;
        // Add a new linked list in the adjacency list
        adjList[vet] = vector<Vertex *>();
    }

    /* Remove vertex */
    void removeVertex(Vertex *vet) {
        if (!adjList.count(vet))
            throw invalid_argument("Vertex does not exist");
        // Remove the linked list corresponding to vertex vet in the adjacency list
        adjList.erase(vet);
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for (auto &adj : adjList) {
            remove(adj.second, vet);
        }
    }

    /* Print adjacency list */
    void print() {
        cout << "Adjacency list =" << endl;
        for (auto &adj : adjList) {
            const auto &key = adj.first;
            const auto &vec = adj.second;
            cout << key->val << ": ";
            printVector(vetsToVals(vec));
        }
    }
};

graph_adjacency_list.java

/* Undirected graph class based on adjacency list */
class GraphAdjList {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    Map<Vertex, List<Vertex>> adjList;

    /* Constructor */
    public GraphAdjList(Vertex[][] edges) {
        this.adjList = new HashMap<>();
        // Add all vertices and edges
        for (Vertex[] edge : edges) {
            addVertex(edge[0]);
            addVertex(edge[1]);
            addEdge(edge[0], edge[1]);
        }
    }

    /* Get the number of vertices */
    public int size() {
        return adjList.size();
    }

    /* Add edge */
    public void addEdge(Vertex vet1, Vertex vet2) {
        if (!adjList.containsKey(vet1) || !adjList.containsKey(vet2) || vet1 == vet2)
            throw new IllegalArgumentException();
        // Add edge vet1 - vet2
        adjList.get(vet1).add(vet2);
        adjList.get(vet2).add(vet1);
    }

    /* Remove edge */
    public void removeEdge(Vertex vet1, Vertex vet2) {
        if (!adjList.containsKey(vet1) || !adjList.containsKey(vet2) || vet1 == vet2)
            throw new IllegalArgumentException();
        // Remove edge vet1 - vet2
        adjList.get(vet1).remove(vet2);
        adjList.get(vet2).remove(vet1);
    }

    /* Add vertex */
    public void addVertex(Vertex vet) {
        if (adjList.containsKey(vet))
            return;
        // Add a new linked list in the adjacency list
        adjList.put(vet, new ArrayList<>());
    }

    /* Remove vertex */
    public void removeVertex(Vertex vet) {
        if (!adjList.containsKey(vet))
            throw new IllegalArgumentException();
        // Remove the linked list corresponding to vertex vet in the adjacency list
        adjList.remove(vet);
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for (List<Vertex> list : adjList.values()) {
            list.remove(vet);
        }
    }

    /* Print adjacency list */
    public void print() {
        System.out.println("Adjacency list =");
        for (Map.Entry<Vertex, List<Vertex>> pair : adjList.entrySet()) {
            List<Integer> tmp = new ArrayList<>();
            for (Vertex vertex : pair.getValue())
                tmp.add(vertex.val);
            System.out.println(pair.getKey().val + ": " + tmp + ",");
        }
    }
}

graph_adjacency_list.cs

/* Undirected graph class based on adjacency list */
class GraphAdjList {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    public Dictionary<Vertex, List<Vertex>> adjList;

    /* Constructor */
    public GraphAdjList(Vertex[][] edges) {
        adjList = [];
        // Add all vertices and edges
        foreach (Vertex[] edge in edges) {
            AddVertex(edge[0]);
            AddVertex(edge[1]);
            AddEdge(edge[0], edge[1]);
        }
    }

    /* Get the number of vertices */
    int Size() {
        return adjList.Count;
    }

    /* Add edge */
    public void AddEdge(Vertex vet1, Vertex vet2) {
        if (!adjList.ContainsKey(vet1) || !adjList.ContainsKey(vet2) || vet1 == vet2)
            throw new InvalidOperationException();
        // Add edge vet1 - vet2
        adjList[vet1].Add(vet2);
        adjList[vet2].Add(vet1);
    }

    /* Remove edge */
    public void RemoveEdge(Vertex vet1, Vertex vet2) {
        if (!adjList.ContainsKey(vet1) || !adjList.ContainsKey(vet2) || vet1 == vet2)
            throw new InvalidOperationException();
        // Remove edge vet1 - vet2
        adjList[vet1].Remove(vet2);
        adjList[vet2].Remove(vet1);
    }

    /* Add vertex */
    public void AddVertex(Vertex vet) {
        if (adjList.ContainsKey(vet))
            return;
        // Add a new linked list in the adjacency list
        adjList.Add(vet, []);
    }

    /* Remove vertex */
    public void RemoveVertex(Vertex vet) {
        if (!adjList.ContainsKey(vet))
            throw new InvalidOperationException();
        // Remove the linked list corresponding to vertex vet in the adjacency list
        adjList.Remove(vet);
        // Traverse the linked lists of other vertices and remove all edges containing vet
        foreach (List<Vertex> list in adjList.Values) {
            list.Remove(vet);
        }
    }

    /* Print adjacency list */
    public void Print() {
        Console.WriteLine("Adjacency list =");
        foreach (KeyValuePair<Vertex, List<Vertex>> pair in adjList) {
            List<int> tmp = [];
            foreach (Vertex vertex in pair.Value)
                tmp.Add(vertex.val);
            Console.WriteLine(pair.Key.val + ": [" + string.Join(", ", tmp) + "],");
        }
    }
}

graph_adjacency_list.go

/* Undirected graph class based on adjacency list */
type graphAdjList struct {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    adjList map[Vertex][]Vertex
}

/* Constructor */
func newGraphAdjList(edges [][]Vertex) *graphAdjList {
    g := &graphAdjList{
        adjList: make(map[Vertex][]Vertex),
    }
    // Add all vertices and edges
    for _, edge := range edges {
        g.addVertex(edge[0])
        g.addVertex(edge[1])
        g.addEdge(edge[0], edge[1])
    }
    return g
}

/* Get the number of vertices */
func (g *graphAdjList) size() int {
    return len(g.adjList)
}

/* Add edge */
func (g *graphAdjList) addEdge(vet1 Vertex, vet2 Vertex) {
    _, ok1 := g.adjList[vet1]
    _, ok2 := g.adjList[vet2]
    if !ok1 || !ok2 || vet1 == vet2 {
        panic("error")
    }
    // Add edge vet1 - vet2, add anonymous struct{},
    g.adjList[vet1] = append(g.adjList[vet1], vet2)
    g.adjList[vet2] = append(g.adjList[vet2], vet1)
}

/* Remove edge */
func (g *graphAdjList) removeEdge(vet1 Vertex, vet2 Vertex) {
    _, ok1 := g.adjList[vet1]
    _, ok2 := g.adjList[vet2]
    if !ok1 || !ok2 || vet1 == vet2 {
        panic("error")
    }
    // Remove edge vet1 - vet2
    g.adjList[vet1] = DeleteSliceElms(g.adjList[vet1], vet2)
    g.adjList[vet2] = DeleteSliceElms(g.adjList[vet2], vet1)
}

/* Add vertex */
func (g *graphAdjList) addVertex(vet Vertex) {
    _, ok := g.adjList[vet]
    if ok {
        return
    }
    // Add a new linked list in the adjacency list
    g.adjList[vet] = make([]Vertex, 0)
}

/* Remove vertex */
func (g *graphAdjList) removeVertex(vet Vertex) {
    _, ok := g.adjList[vet]
    if !ok {
        panic("error")
    }
    // Remove the linked list corresponding to vertex vet in the adjacency list
    delete(g.adjList, vet)
    // Traverse the linked lists of other vertices and remove all edges containing vet
    for v, list := range g.adjList {
        g.adjList[v] = DeleteSliceElms(list, vet)
    }
}

/* Print adjacency list */
func (g *graphAdjList) print() {
    var builder strings.Builder
    fmt.Printf("Adjacency list = \n")
    for k, v := range g.adjList {
        builder.WriteString("\t\t" + strconv.Itoa(k.Val) + ": ")
        for _, vet := range v {
            builder.WriteString(strconv.Itoa(vet.Val) + " ")
        }
        fmt.Println(builder.String())
        builder.Reset()
    }
}

graph_adjacency_list.swift

/* Undirected graph class based on adjacency list */
class GraphAdjList {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    public private(set) var adjList: [Vertex: [Vertex]]

    /* Constructor */
    public init(edges: [[Vertex]]) {
        adjList = [:]
        // Add all vertices and edges
        for edge in edges {
            addVertex(vet: edge[0])
            addVertex(vet: edge[1])
            addEdge(vet1: edge[0], vet2: edge[1])
        }
    }

    /* Get the number of vertices */
    public func size() -> Int {
        adjList.count
    }

    /* Add edge */
    public func addEdge(vet1: Vertex, vet2: Vertex) {
        if adjList[vet1] == nil || adjList[vet2] == nil || vet1 == vet2 {
            fatalError("Invalid parameter")
        }
        // Add edge vet1 - vet2
        adjList[vet1]?.append(vet2)
        adjList[vet2]?.append(vet1)
    }

    /* Remove edge */
    public func removeEdge(vet1: Vertex, vet2: Vertex) {
        if adjList[vet1] == nil || adjList[vet2] == nil || vet1 == vet2 {
            fatalError("Invalid parameter")
        }
        // Remove edge vet1 - vet2
        adjList[vet1]?.removeAll { $0 == vet2 }
        adjList[vet2]?.removeAll { $0 == vet1 }
    }

    /* Add vertex */
    public func addVertex(vet: Vertex) {
        if adjList[vet] != nil {
            return
        }
        // Add a new linked list in the adjacency list
        adjList[vet] = []
    }

    /* Remove vertex */
    public func removeVertex(vet: Vertex) {
        if adjList[vet] == nil {
            fatalError("Invalid parameter")
        }
        // Remove the linked list corresponding to vertex vet in the adjacency list
        adjList.removeValue(forKey: vet)
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for key in adjList.keys {
            adjList[key]?.removeAll { $0 == vet }
        }
    }

    /* Print adjacency list */
    public func print() {
        Swift.print("Adjacency list =")
        for (vertex, list) in adjList {
            let list = list.map { $0.val }
            Swift.print("\(vertex.val): \(list),")
        }
    }
}

graph_adjacency_list.js

/* Undirected graph class based on adjacency list */
class GraphAdjList {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    adjList;

    /* Constructor */
    constructor(edges) {
        this.adjList = new Map();
        // Add all vertices and edges
        for (const edge of edges) {
            this.addVertex(edge[0]);
            this.addVertex(edge[1]);
            this.addEdge(edge[0], edge[1]);
        }
    }

    /* Get the number of vertices */
    size() {
        return this.adjList.size;
    }

    /* Add edge */
    addEdge(vet1, vet2) {
        if (
            !this.adjList.has(vet1) ||
            !this.adjList.has(vet2) ||
            vet1 === vet2
        ) {
            throw new Error('Illegal Argument Exception');
        }
        // Add edge vet1 - vet2
        this.adjList.get(vet1).push(vet2);
        this.adjList.get(vet2).push(vet1);
    }

    /* Remove edge */
    removeEdge(vet1, vet2) {
        if (
            !this.adjList.has(vet1) ||
            !this.adjList.has(vet2) ||
            vet1 === vet2 ||
            this.adjList.get(vet1).indexOf(vet2) === -1
        ) {
            throw new Error('Illegal Argument Exception');
        }
        // Remove edge vet1 - vet2
        this.adjList.get(vet1).splice(this.adjList.get(vet1).indexOf(vet2), 1);
        this.adjList.get(vet2).splice(this.adjList.get(vet2).indexOf(vet1), 1);
    }

    /* Add vertex */
    addVertex(vet) {
        if (this.adjList.has(vet)) return;
        // Add a new linked list in the adjacency list
        this.adjList.set(vet, []);
    }

    /* Remove vertex */
    removeVertex(vet) {
        if (!this.adjList.has(vet)) {
            throw new Error('Illegal Argument Exception');
        }
        // Remove the linked list corresponding to vertex vet in the adjacency list
        this.adjList.delete(vet);
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for (const set of this.adjList.values()) {
            const index = set.indexOf(vet);
            if (index > -1) {
                set.splice(index, 1);
            }
        }
    }

    /* Print adjacency list */
    print() {
        console.log('Adjacency list =');
        for (const [key, value] of this.adjList) {
            const tmp = [];
            for (const vertex of value) {
                tmp.push(vertex.val);
            }
            console.log(key.val + ': ' + tmp.join());
        }
    }
}

graph_adjacency_list.ts

/* Undirected graph class based on adjacency list */
class GraphAdjList {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    adjList: Map<Vertex, Vertex[]>;

    /* Constructor */
    constructor(edges: Vertex[][]) {
        this.adjList = new Map();
        // Add all vertices and edges
        for (const edge of edges) {
            this.addVertex(edge[0]);
            this.addVertex(edge[1]);
            this.addEdge(edge[0], edge[1]);
        }
    }

    /* Get the number of vertices */
    size(): number {
        return this.adjList.size;
    }

    /* Add edge */
    addEdge(vet1: Vertex, vet2: Vertex): void {
        if (
            !this.adjList.has(vet1) ||
            !this.adjList.has(vet2) ||
            vet1 === vet2
        ) {
            throw new Error('Illegal Argument Exception');
        }
        // Add edge vet1 - vet2
        this.adjList.get(vet1).push(vet2);
        this.adjList.get(vet2).push(vet1);
    }

    /* Remove edge */
    removeEdge(vet1: Vertex, vet2: Vertex): void {
        if (
            !this.adjList.has(vet1) ||
            !this.adjList.has(vet2) ||
            vet1 === vet2 ||
            this.adjList.get(vet1).indexOf(vet2) === -1
        ) {
            throw new Error('Illegal Argument Exception');
        }
        // Remove edge vet1 - vet2
        this.adjList.get(vet1).splice(this.adjList.get(vet1).indexOf(vet2), 1);
        this.adjList.get(vet2).splice(this.adjList.get(vet2).indexOf(vet1), 1);
    }

    /* Add vertex */
    addVertex(vet: Vertex): void {
        if (this.adjList.has(vet)) return;
        // Add a new linked list in the adjacency list
        this.adjList.set(vet, []);
    }

    /* Remove vertex */
    removeVertex(vet: Vertex): void {
        if (!this.adjList.has(vet)) {
            throw new Error('Illegal Argument Exception');
        }
        // Remove the linked list corresponding to vertex vet in the adjacency list
        this.adjList.delete(vet);
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for (const set of this.adjList.values()) {
            const index: number = set.indexOf(vet);
            if (index > -1) {
                set.splice(index, 1);
            }
        }
    }

    /* Print adjacency list */
    print(): void {
        console.log('Adjacency list =');
        for (const [key, value] of this.adjList.entries()) {
            const tmp = [];
            for (const vertex of value) {
                tmp.push(vertex.val);
            }
            console.log(key.val + ': ' + tmp.join());
        }
    }
}

graph_adjacency_list.dart

/* Undirected graph class based on adjacency list */
class GraphAdjList {
  // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
  Map<Vertex, List<Vertex>> adjList = {};

  /* Constructor */
  GraphAdjList(List<List<Vertex>> edges) {
    for (List<Vertex> edge in edges) {
      addVertex(edge[0]);
      addVertex(edge[1]);
      addEdge(edge[0], edge[1]);
    }
  }

  /* Get the number of vertices */
  int size() {
    return adjList.length;
  }

  /* Add edge */
  void addEdge(Vertex vet1, Vertex vet2) {
    if (!adjList.containsKey(vet1) ||
        !adjList.containsKey(vet2) ||
        vet1 == vet2) {
      throw ArgumentError;
    }
    // Add edge vet1 - vet2
    adjList[vet1]!.add(vet2);
    adjList[vet2]!.add(vet1);
  }

  /* Remove edge */
  void removeEdge(Vertex vet1, Vertex vet2) {
    if (!adjList.containsKey(vet1) ||
        !adjList.containsKey(vet2) ||
        vet1 == vet2) {
      throw ArgumentError;
    }
    // Remove edge vet1 - vet2
    adjList[vet1]!.remove(vet2);
    adjList[vet2]!.remove(vet1);
  }

  /* Add vertex */
  void addVertex(Vertex vet) {
    if (adjList.containsKey(vet)) return;
    // Add a new linked list in the adjacency list
    adjList[vet] = [];
  }

  /* Remove vertex */
  void removeVertex(Vertex vet) {
    if (!adjList.containsKey(vet)) {
      throw ArgumentError;
    }
    // Remove the linked list corresponding to vertex vet in the adjacency list
    adjList.remove(vet);
    // Traverse the linked lists of other vertices and remove all edges containing vet
    adjList.forEach((key, value) {
      value.remove(vet);
    });
  }

  /* Print adjacency list */
  void printAdjList() {
    print("Adjacency list =");
    adjList.forEach((key, value) {
      List<int> tmp = [];
      for (Vertex vertex in value) {
        tmp.add(vertex.val);
      }
      print("${key.val}: $tmp,");
    });
  }
}

graph_adjacency_list.rs

/* Undirected graph type based on adjacency list */
pub struct GraphAdjList {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    pub adj_list: HashMap<Vertex, Vec<Vertex>>, // maybe HashSet<Vertex> for value part is better?
}

impl GraphAdjList {
    /* Constructor */
    pub fn new(edges: Vec<[Vertex; 2]>) -> Self {
        let mut graph = GraphAdjList {
            adj_list: HashMap::new(),
        };
        // Add all vertices and edges
        for edge in edges {
            graph.add_vertex(edge[0]);
            graph.add_vertex(edge[1]);
            graph.add_edge(edge[0], edge[1]);
        }

        graph
    }

    /* Get the number of vertices */
    #[allow(unused)]
    pub fn size(&self) -> usize {
        self.adj_list.len()
    }

    /* Add edge */
    pub fn add_edge(&mut self, vet1: Vertex, vet2: Vertex) {
        if vet1 == vet2 {
            panic!("value error");
        }
        // Add edge vet1 - vet2
        self.adj_list.entry(vet1).or_default().push(vet2);
        self.adj_list.entry(vet2).or_default().push(vet1);
    }

    /* Remove edge */
    #[allow(unused)]
    pub fn remove_edge(&mut self, vet1: Vertex, vet2: Vertex) {
        if vet1 == vet2 {
            panic!("value error");
        }
        // Remove edge vet1 - vet2
        self.adj_list
            .entry(vet1)
            .and_modify(|v| v.retain(|&e| e != vet2));
        self.adj_list
            .entry(vet2)
            .and_modify(|v| v.retain(|&e| e != vet1));
    }

    /* Add vertex */
    pub fn add_vertex(&mut self, vet: Vertex) {
        if self.adj_list.contains_key(&vet) {
            return;
        }
        // Add a new linked list in the adjacency list
        self.adj_list.insert(vet, vec![]);
    }

    /* Remove vertex */
    #[allow(unused)]
    pub fn remove_vertex(&mut self, vet: Vertex) {
        // Remove the linked list corresponding to vertex vet in the adjacency list
        self.adj_list.remove(&vet);
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for list in self.adj_list.values_mut() {
            list.retain(|&v| v != vet);
        }
    }

    /* Print adjacency list */
    pub fn print(&self) {
        println!("Adjacency list =");
        for (vertex, list) in &self.adj_list {
            let list = list.iter().map(|vertex| vertex.val).collect::<Vec<i32>>();
            println!("{}: {:?},", vertex.val, list);
        }
    }
}

graph_adjacency_list.c

/* Node structure */
typedef struct AdjListNode {
    Vertex *vertex;           // Vertex
    struct AdjListNode *next; // Successor node
} AdjListNode;

/* Find node corresponding to vertex */
AdjListNode *findNode(GraphAdjList *graph, Vertex *vet) {
    for (int i = 0; i < graph->size; i++) {
        if (graph->heads[i]->vertex == vet) {
            return graph->heads[i];
        }
    }
    return NULL;
}

/* Add edge helper function */
void addEdgeHelper(AdjListNode *head, Vertex *vet) {
    AdjListNode *node = (AdjListNode *)malloc(sizeof(AdjListNode));
    node->vertex = vet;
    // Head insertion
    node->next = head->next;
    head->next = node;
}

/* Remove edge helper function */
void removeEdgeHelper(AdjListNode *head, Vertex *vet) {
    AdjListNode *pre = head;
    AdjListNode *cur = head->next;
    // Search for node corresponding to vet in list
    while (cur != NULL && cur->vertex != vet) {
        pre = cur;
        cur = cur->next;
    }
    if (cur == NULL)
        return;
    // Remove node corresponding to vet from list
    pre->next = cur->next;
    // Free memory
    free(cur);
}

/* Undirected graph class based on adjacency list */
typedef struct {
    AdjListNode *heads[MAX_SIZE]; // Node array
    int size;                     // Node count
} GraphAdjList;

/* Constructor */
GraphAdjList *newGraphAdjList() {
    GraphAdjList *graph = (GraphAdjList *)malloc(sizeof(GraphAdjList));
    if (!graph) {
        return NULL;
    }
    graph->size = 0;
    for (int i = 0; i < MAX_SIZE; i++) {
        graph->heads[i] = NULL;
    }
    return graph;
}

/* Destructor */
void delGraphAdjList(GraphAdjList *graph) {
    for (int i = 0; i < graph->size; i++) {
        AdjListNode *cur = graph->heads[i];
        while (cur != NULL) {
            AdjListNode *next = cur->next;
            if (cur != graph->heads[i]) {
                free(cur);
            }
            cur = next;
        }
        free(graph->heads[i]->vertex);
        free(graph->heads[i]);
    }
    free(graph);
}

/* Find node corresponding to vertex */
AdjListNode *findNode(GraphAdjList *graph, Vertex *vet) {
    for (int i = 0; i < graph->size; i++) {
        if (graph->heads[i]->vertex == vet) {
            return graph->heads[i];
        }
    }
    return NULL;
}

/* Add edge */
void addEdge(GraphAdjList *graph, Vertex *vet1, Vertex *vet2) {
    AdjListNode *head1 = findNode(graph, vet1);
    AdjListNode *head2 = findNode(graph, vet2);
    assert(head1 != NULL && head2 != NULL && head1 != head2);
    // Add edge vet1 - vet2
    addEdgeHelper(head1, vet2);
    addEdgeHelper(head2, vet1);
}

/* Remove edge */
void removeEdge(GraphAdjList *graph, Vertex *vet1, Vertex *vet2) {
    AdjListNode *head1 = findNode(graph, vet1);
    AdjListNode *head2 = findNode(graph, vet2);
    assert(head1 != NULL && head2 != NULL);
    // Remove edge vet1 - vet2
    removeEdgeHelper(head1, head2->vertex);
    removeEdgeHelper(head2, head1->vertex);
}

/* Add vertex */
void addVertex(GraphAdjList *graph, Vertex *vet) {
    assert(graph != NULL && graph->size < MAX_SIZE);
    AdjListNode *head = (AdjListNode *)malloc(sizeof(AdjListNode));
    head->vertex = vet;
    head->next = NULL;
    // Add a new linked list in the adjacency list
    graph->heads[graph->size++] = head;
}

/* Remove vertex */
void removeVertex(GraphAdjList *graph, Vertex *vet) {
    AdjListNode *node = findNode(graph, vet);
    assert(node != NULL);
    // Remove the linked list corresponding to vertex vet in the adjacency list
    AdjListNode *cur = node, *pre = NULL;
    while (cur) {
        pre = cur;
        cur = cur->next;
        free(pre);
    }
    // Traverse the linked lists of other vertices and remove all edges containing vet
    for (int i = 0; i < graph->size; i++) {
        cur = graph->heads[i];
        pre = NULL;
        while (cur) {
            pre = cur;
            cur = cur->next;
            if (cur && cur->vertex == vet) {
                pre->next = cur->next;
                free(cur);
                break;
            }
        }
    }
    // Move vertices after this vertex forward to fill gap
    int i;
    for (i = 0; i < graph->size; i++) {
        if (graph->heads[i] == node)
            break;
    }
    for (int j = i; j < graph->size - 1; j++) {
        graph->heads[j] = graph->heads[j + 1];
    }
    graph->size--;
    free(vet);
}

graph_adjacency_list.kt

/* Undirected graph class based on adjacency list */
class GraphAdjList(edges: Array<Array<Vertex?>>) {
    // Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    val adjList = HashMap<Vertex, MutableList<Vertex>>()

    /* Constructor */
    init {
        // Add all vertices and edges
        for (edge in edges) {
            addVertex(edge[0]!!)
            addVertex(edge[1]!!)
            addEdge(edge[0]!!, edge[1]!!)
        }
    }

    /* Get the number of vertices */
    fun size(): Int {
        return adjList.size
    }

    /* Add edge */
    fun addEdge(vet1: Vertex, vet2: Vertex) {
        if (!adjList.containsKey(vet1) || !adjList.containsKey(vet2) || vet1 == vet2)
            throw IllegalArgumentException()
        // Add edge vet1 - vet2
        adjList[vet1]?.add(vet2)
        adjList[vet2]?.add(vet1)
    }

    /* Remove edge */
    fun removeEdge(vet1: Vertex, vet2: Vertex) {
        if (!adjList.containsKey(vet1) || !adjList.containsKey(vet2) || vet1 == vet2)
            throw IllegalArgumentException()
        // Remove edge vet1 - vet2
        adjList[vet1]?.remove(vet2)
        adjList[vet2]?.remove(vet1)
    }

    /* Add vertex */
    fun addVertex(vet: Vertex) {
        if (adjList.containsKey(vet))
            return
        // Add a new linked list in the adjacency list
        adjList[vet] = mutableListOf()
    }

    /* Remove vertex */
    fun removeVertex(vet: Vertex) {
        if (!adjList.containsKey(vet))
            throw IllegalArgumentException()
        // Remove the linked list corresponding to vertex vet in the adjacency list
        adjList.remove(vet)
        // Traverse the linked lists of other vertices and remove all edges containing vet
        for (list in adjList.values) {
            list.remove(vet)
        }
    }

    /* Print adjacency list */
    fun print() {
        println("Adjacency list =")
        for (pair in adjList.entries) {
            val tmp = mutableListOf<Int>()
            for (vertex in pair.value) {
                tmp.add(vertex._val)
            }
            println("${pair.key._val}: $tmp,")
        }
    }
}

graph_adjacency_list.rb

### Undirected graph class based on adjacency list ###
class GraphAdjList
  attr_reader :adj_list

  ### Constructor ###
  def initialize(edges)
    # Adjacency list, key: vertex, value: all adjacent vertices of that vertex
    @adj_list = {}
    # Add all vertices and edges
    for edge in edges
      add_vertex(edge[0])
      add_vertex(edge[1])
      add_edge(edge[0], edge[1])
    end
  end

  ### Get number of vertices ###
  def size
    @adj_list.length
  end

  ### Add edge ###
  def add_edge(vet1, vet2)
    raise ArgumentError if !@adj_list.include?(vet1) || !@adj_list.include?(vet2)

    @adj_list[vet1] << vet2
    @adj_list[vet2] << vet1
  end

  ### Delete edge ###
  def remove_edge(vet1, vet2)
    raise ArgumentError if !@adj_list.include?(vet1) || !@adj_list.include?(vet2)

    # Remove edge vet1 - vet2
    @adj_list[vet1].delete(vet2)
    @adj_list[vet2].delete(vet1)
  end

  ### Add vertex ###
  def add_vertex(vet)
    return if @adj_list.include?(vet)

    # Add a new linked list in the adjacency list
    @adj_list[vet] = []
  end

  ### Delete vertex ###
  def remove_vertex(vet)
    raise ArgumentError unless @adj_list.include?(vet)

    # Remove the linked list corresponding to vertex vet in the adjacency list
    @adj_list.delete(vet)
    # Traverse the linked lists of other vertices and remove all edges containing vet
    for vertex in @adj_list
      @adj_list[vertex.first].delete(vet) if @adj_list[vertex.first].include?(vet)
    end
  end

  ### Print adjacency list ###
  def __print__
    puts 'Adjacency list ='
    for vertex in @adj_list
      tmp = @adj_list[vertex.first].map { |v| v.val }
      puts "#{vertex.first.val}: #{tmp},"
    end
  end
end

9.2.3   Efficiency Comparison

Assuming the graph has \(n\) vertices and \(m\) edges, Table 9-2 compares the time efficiency and space efficiency of adjacency matrices and adjacency lists. Note that the adjacency list (linked list) corresponds to the implementation in this text, while the adjacency list (hash table) refers specifically to the implementation where all linked lists are replaced with hash tables.

Table 9-2   Comparison of adjacency matrix and adjacency list

	Adjacency matrix	Adjacency list (linked list)	Adjacency list (hash table)
Determine adjacency	\(O(1)\)	\(O(n)\)	\(O(1)\)
Add an edge	\(O(1)\)	\(O(1)\)	\(O(1)\)
Remove an edge	\(O(1)\)	\(O(n)\)	\(O(1)\)
Add a vertex	\(O(n)\)	\(O(1)\)	\(O(1)\)
Remove a vertex	\(O(n^2)\)	\(O(n + m)\)	\(O(n)\)
Memory space usage	\(O(n^2)\)	\(O(n + m)\)	\(O(n + m)\)

Observing Table 9-2, it appears that the adjacency list (hash table) has the best time efficiency and space efficiency. However, in practice, operating on edges in the adjacency matrix is more efficient, requiring only a single array access or assignment operation. Overall, adjacency matrices embody the principle of "trading space for time", while adjacency lists embody "trading time for space".

Feel free to drop your insights, questions or suggestions
