12.3 Building binary tree problem¶
Question
Given the pre-order traversal preorder and in-order traversal inorder of a binary tree, construct the binary tree and return the root node of the binary tree. Assume that there are no duplicate values in the nodes of the binary tree (as shown in Figure 12-5).
Figure 12-5 Example data for building a binary tree
1. Determining if it is a divide and conquer problem¶
The original problem of constructing a binary tree from preorder and inorder is a typical divide and conquer problem.
- The problem can be decomposed: From the perspective of divide and conquer, we can divide the original problem into two subproblems: building the left subtree and building the right subtree, plus one operation: initializing the root node. For each subtree (subproblem), we can still use the above division method, dividing it into smaller subtrees (subproblems), until the smallest subproblem (empty subtree) is reached.
- The subproblems are independent: The left and right subtrees are independent of each other, with no overlap. When building the left subtree, we only need to focus on the parts of the in-order and pre-order traversals that correspond to the left subtree. The same applies to the right subtree.
- Solutions to subproblems can be combined: Once the solutions for the left and right subtrees (solutions to subproblems) are obtained, we can link them to the root node to obtain the solution to the original problem.
2. How to divide the subtrees¶
Based on the above analysis, this problem can be solved using divide and conquer, but how do we use the pre-order traversal preorder and in-order traversal inorder to divide the left and right subtrees?
By definition, preorder and inorder can be divided into three parts.
- Pre-order traversal:
[ Root | Left Subtree | Right Subtree ], for example, the tree in the figure corresponds to[ 3 | 9 | 2 1 7 ]. - In-order traversal:
[ Left Subtree | Root | Right Subtree ], for example, the tree in the figure corresponds to[ 9 | 3 | 1 2 7 ].
Using the data in the figure above, we can obtain the division results as shown in Figure 12-6.
- The first element 3 in the pre-order traversal is the value of the root node.
- Find the index of the root node 3 in
inorder, and use this index to divideinorderinto[ 9 | 3 ｜ 1 2 7 ]. - Based on the division results of
inorder, it is easy to determine the number of nodes in the left and right subtrees as 1 and 3, respectively, thus dividingpreorderinto[ 3 | 9 | 2 1 7 ].
Figure 12-6 Dividing the subtrees in pre-order and in-order traversals
3. Describing subtree intervals based on variables¶
Based on the above division method, we have now obtained the index intervals of the root, left subtree, and right subtree in preorder and inorder. To describe these index intervals, we need the help of several pointer variables.
- Let the index of the current tree's root node in
preorderbe denoted as \(i\). - Let the index of the current tree's root node in
inorderbe denoted as \(m\). - Let the index interval of the current tree in
inorderbe denoted as \([l, r]\).
As shown in Table 12-1, the above variables can represent the index of the root node in preorder as well as the index intervals of the subtrees in inorder.
Table 12-1 Indexes of the root node and subtrees in pre-order and in-order traversals
Root node index in preorder |
Subtree index interval in inorder |
|
|---|---|---|
| Current tree | \(i\) | \([l, r]\) |
| Left subtree | \(i + 1\) | \([l, m-1]\) |
| Right subtree | \(i + 1 + (m - l)\) | \([m+1, r]\) |
Please note, the meaning of \((m-l)\) in the right subtree root index is "the number of nodes in the left subtree", which is suggested to be understood in conjunction with Figure 12-7.
Figure 12-7 Indexes of the root node and left and right subtrees
4. Code implementation¶
To improve the efficiency of querying \(m\), we use a hash table hmap to store the mapping of elements in inorder to their indexes:
def dfs(
preorder: list[int],
inorder_map: dict[int, int],
i: int,
l: int,
r: int,
) -> TreeNode | None:
"""Build binary tree: Divide and conquer"""
# Terminate when subtree interval is empty
if r - l < 0:
return None
# Initialize root node
root = TreeNode(preorder[i])
# Query m to divide left and right subtrees
m = inorder_map[preorder[i]]
# Subproblem: build left subtree
root.left = dfs(preorder, inorder_map, i + 1, l, m - 1)
# Subproblem: build right subtree
root.right = dfs(preorder, inorder_map, i + 1 + m - l, m + 1, r)
# Return root node
return root
def build_tree(preorder: list[int], inorder: list[int]) -> TreeNode | None:
"""Build binary tree"""
# Initialize hash table, storing in-order elements to indices mapping
inorder_map = {val: i for i, val in enumerate(inorder)}
root = dfs(preorder, inorder_map, 0, 0, len(inorder) - 1)
return root
/* Build binary tree: Divide and conquer */
TreeNode *dfs(vector<int> &preorder, unordered_map<int, int> &inorderMap, int i, int l, int r) {
// Terminate when subtree interval is empty
if (r - l < 0)
return NULL;
// Initialize root node
TreeNode *root = new TreeNode(preorder[i]);
// Query m to divide left and right subtrees
int m = inorderMap[preorder[i]];
// Subproblem: build left subtree
root->left = dfs(preorder, inorderMap, i + 1, l, m - 1);
// Subproblem: build right subtree
root->right = dfs(preorder, inorderMap, i + 1 + m - l, m + 1, r);
// Return root node
return root;
}
/* Build binary tree */
TreeNode *buildTree(vector<int> &preorder, vector<int> &inorder) {
// Initialize hash table, storing in-order elements to indices mapping
unordered_map<int, int> inorderMap;
for (int i = 0; i < inorder.size(); i++) {
inorderMap[inorder[i]] = i;
}
TreeNode *root = dfs(preorder, inorderMap, 0, 0, inorder.size() - 1);
return root;
}
/* Build binary tree: Divide and conquer */
TreeNode dfs(int[] preorder, Map<Integer, Integer> inorderMap, int i, int l, int r) {
// Terminate when subtree interval is empty
if (r - l < 0)
return null;
// Initialize root node
TreeNode root = new TreeNode(preorder[i]);
// Query m to divide left and right subtrees
int m = inorderMap.get(preorder[i]);
// Subproblem: build left subtree
root.left = dfs(preorder, inorderMap, i + 1, l, m - 1);
// Subproblem: build right subtree
root.right = dfs(preorder, inorderMap, i + 1 + m - l, m + 1, r);
// Return root node
return root;
}
/* Build binary tree */
TreeNode buildTree(int[] preorder, int[] inorder) {
// Initialize hash table, storing in-order elements to indices mapping
Map<Integer, Integer> inorderMap = new HashMap<>();
for (int i = 0; i < inorder.length; i++) {
inorderMap.put(inorder[i], i);
}
TreeNode root = dfs(preorder, inorderMap, 0, 0, inorder.length - 1);
return root;
}

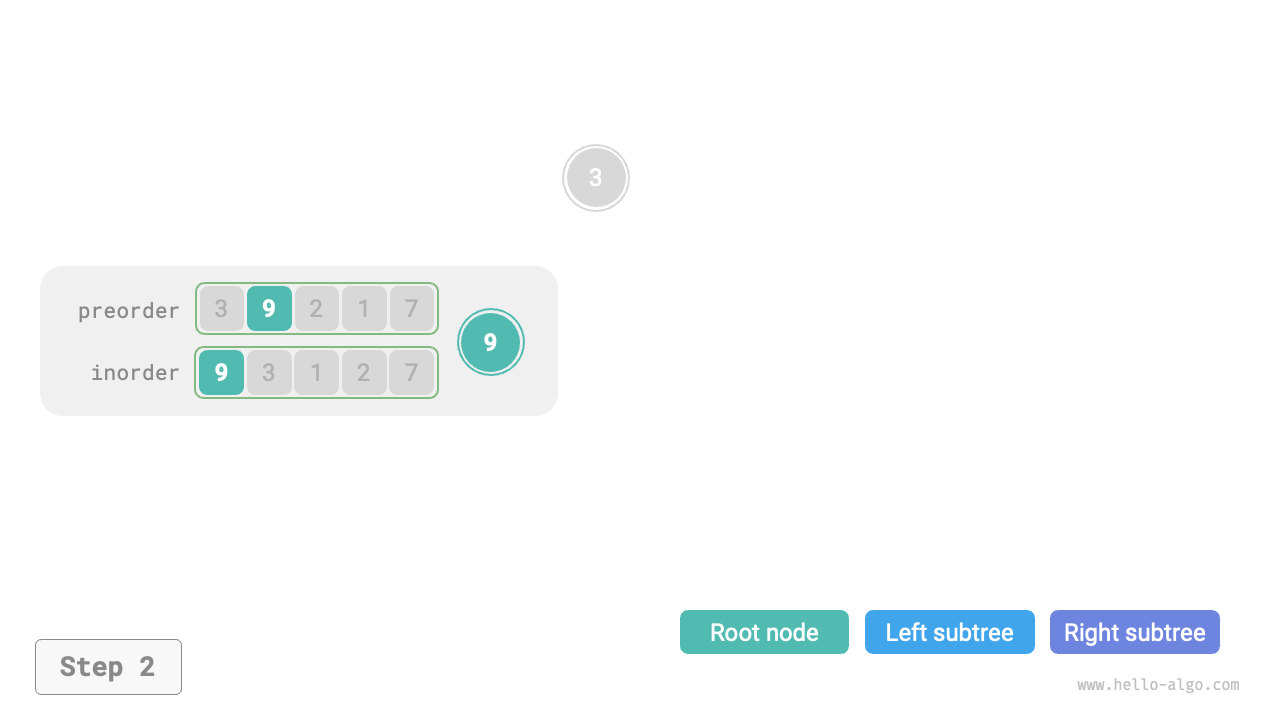

Figure 12-8 shows the recursive process of building the binary tree, where each node is established during the "descending" process, and each edge (reference) is established during the "ascending" process.
Figure 12-8 Recursive process of building a binary tree
Each recursive function's division results of preorder and inorder are shown in Figure 12-9.
Figure 12-9 Division results in each recursive function
Assuming the number of nodes in the tree is \(n\), initializing each node (executing a recursive function dfs()) takes \(O(1)\) time. Thus, the overall time complexity is \(O(n)\).
The hash table stores the mapping of inorder elements to their indexes, with a space complexity of \(O(n)\). In the worst case, when the binary tree degenerates into a linked list, the recursive depth reaches \(n\), using \(O(n)\) stack frame space. Therefore, the overall space complexity is \(O(n)\).
