5.2 Queues¶
A queue is a linear data structure that follows a first-in, first-out rule. It models a line of people: newcomers join at the back, while those at the front leave one by one.
As shown below, the two ends are called the “front” and the “rear.” Adding an element at the rear is called “enqueueing,” and removing an element from the front is called “dequeueing.”
Figure 5-4 The first-in, first-out rule of a queue
5.2.1 Common queue operations¶
Table 5-2 lists common operations. Method names vary between programming languages; here we use the same names as for stacks.
Table 5-2 Efficiency of queue operations
| Method | Description | Time complexity |
|---|---|---|
push() |
Enqueue an element at the rear | \(O(1)\) |
pop() |
Dequeue the front element | \(O(1)\) |
peek() |
Access the front element | \(O(1)\) |
We can use a queue class already provided by the programming language:
queue.py
from collections import deque
# Initialize a queue
# In Python, we usually use the deque class as a queue
# Although queue.Queue() is a dedicated queue class, it is less convenient and is not recommended here
que: deque[int] = deque()
# Enqueue elements
que.append(1)
que.append(3)
que.append(2)
que.append(5)
que.append(4)
# Access the front element
front: int = que[0]
# Dequeue an element
pop: int = que.popleft()
# Get the queue size
size: int = len(que)
# Check whether the queue is empty
is_empty: bool = len(que) == 0
queue.cpp
/* Initialize a queue */
queue<int> queue;
/* Enqueue elements */
queue.push(1);
queue.push(3);
queue.push(2);
queue.push(5);
queue.push(4);
/* Access the front element */
int front = queue.front();
/* Dequeue an element */
queue.pop();
/* Get the queue size */
int size = queue.size();
/* Check whether the queue is empty */
bool empty = queue.empty();
queue.java
/* Initialize a queue */
Queue<Integer> queue = new LinkedList<>();
/* Enqueue elements */
queue.offer(1);
queue.offer(3);
queue.offer(2);
queue.offer(5);
queue.offer(4);
/* Access the front element */
int peek = queue.peek();
/* Dequeue an element */
int pop = queue.poll();
/* Get the queue size */
int size = queue.size();
/* Check whether the queue is empty */
boolean isEmpty = queue.isEmpty();
queue.cs
/* Initialize a queue */
Queue<int> queue = new();
/* Enqueue elements */
queue.Enqueue(1);
queue.Enqueue(3);
queue.Enqueue(2);
queue.Enqueue(5);
queue.Enqueue(4);
/* Access the front element */
int peek = queue.Peek();
/* Dequeue an element */
int pop = queue.Dequeue();
/* Get the queue size */
int size = queue.Count;
/* Check whether the queue is empty */
bool isEmpty = queue.Count == 0;
queue_test.go
/* Initialize a queue */
// In Go, use a list as a queue
queue := list.New()
/* Enqueue elements */
queue.PushBack(1)
queue.PushBack(3)
queue.PushBack(2)
queue.PushBack(5)
queue.PushBack(4)
/* Access the front element */
peek := queue.Front()
/* Dequeue an element */
pop := queue.Front()
queue.Remove(pop)
/* Get the queue size */
size := queue.Len()
/* Check whether the queue is empty */
isEmpty := queue.Len() == 0
queue.swift
/* Initialize a queue */
// Swift has no built-in queue class; use an Array as a queue
var queue: [Int] = []
/* Enqueue elements */
queue.append(1)
queue.append(3)
queue.append(2)
queue.append(5)
queue.append(4)
/* Access the front element */
let peek = queue.first!
/* Dequeue an element */
// Because this is an array, removeFirst takes O(n) time
let pop = queue.removeFirst()
/* Get the queue size */
let size = queue.count
/* Check whether the queue is empty */
let isEmpty = queue.isEmpty
queue.js
/* Initialize a queue */
// JavaScript has no built-in queue; use an Array as a queue
const queue = [];
/* Enqueue elements */
queue.push(1);
queue.push(3);
queue.push(2);
queue.push(5);
queue.push(4);
/* Access the front element */
const peek = queue[0];
/* Dequeue an element */
// The underlying structure is an array, so shift() takes O(n) time
const pop = queue.shift();
/* Get the queue size */
const size = queue.length;
/* Check whether the queue is empty */
const empty = queue.length === 0;
queue.ts
/* Initialize a queue */
// TypeScript has no built-in queue; use an Array as a queue
const queue: number[] = [];
/* Enqueue elements */
queue.push(1);
queue.push(3);
queue.push(2);
queue.push(5);
queue.push(4);
/* Access the front element */
const peek = queue[0];
/* Dequeue an element */
// The underlying structure is an array, so shift() takes O(n) time
const pop = queue.shift();
/* Get the queue size */
const size = queue.length;
/* Check whether the queue is empty */
const empty = queue.length === 0;
queue.dart
/* Initialize a queue */
// In Dart, Queue is a deque and can also be used as a queue
Queue<int> queue = Queue();
/* Enqueue elements */
queue.add(1);
queue.add(3);
queue.add(2);
queue.add(5);
queue.add(4);
/* Access the front element */
int peek = queue.first;
/* Dequeue an element */
int pop = queue.removeFirst();
/* Get the queue size */
int size = queue.length;
/* Check whether the queue is empty */
bool isEmpty = queue.isEmpty;
queue.rs
/* Initialize a deque */
// In Rust, use a deque as an ordinary queue
let mut deque: VecDeque<u32> = VecDeque::new();
/* Enqueue elements */
deque.push_back(1);
deque.push_back(3);
deque.push_back(2);
deque.push_back(5);
deque.push_back(4);
/* Access the front element */
if let Some(front) = deque.front() {
}
/* Dequeue an element */
if let Some(pop) = deque.pop_front() {
}
/* Get the queue size */
let size = deque.len();
/* Check whether the queue is empty */
let is_empty = deque.is_empty();
queue.kt
/* Initialize a queue */
val queue = LinkedList<Int>()
/* Enqueue elements */
queue.offer(1)
queue.offer(3)
queue.offer(2)
queue.offer(5)
queue.offer(4)
/* Access the front element */
val peek = queue.peek()
/* Dequeue an element */
val pop = queue.poll()
/* Get the queue size */
val size = queue.size
/* Check whether the queue is empty */
val isEmpty = queue.isEmpty()
queue.rb
# Initialize a queue
# Ruby's built-in Thread::Queue has no peek or traversal methods; use an Array as a queue
queue = []
# Enqueue elements
queue.push(1)
queue.push(3)
queue.push(2)
queue.push(5)
queue.push(4)
# Access the front element of the queue
peek = queue.first
# Dequeue an element
# Note that this is an array, so Array#shift takes O(n) time
pop = queue.shift
# Get the queue size
size = queue.length
# Check whether the queue is empty
is_empty = queue.empty?
Visualize execution
5.2.2 Implementing a queue¶
A queue needs a data structure that allows insertion at one end and deletion at the other. Both linked lists and arrays can meet this requirement.
1. Implementation with a linked list¶
As shown below, treat the linked list's head and tail as the queue's front and rear. Nodes may be added only at the rear and removed only from the front.

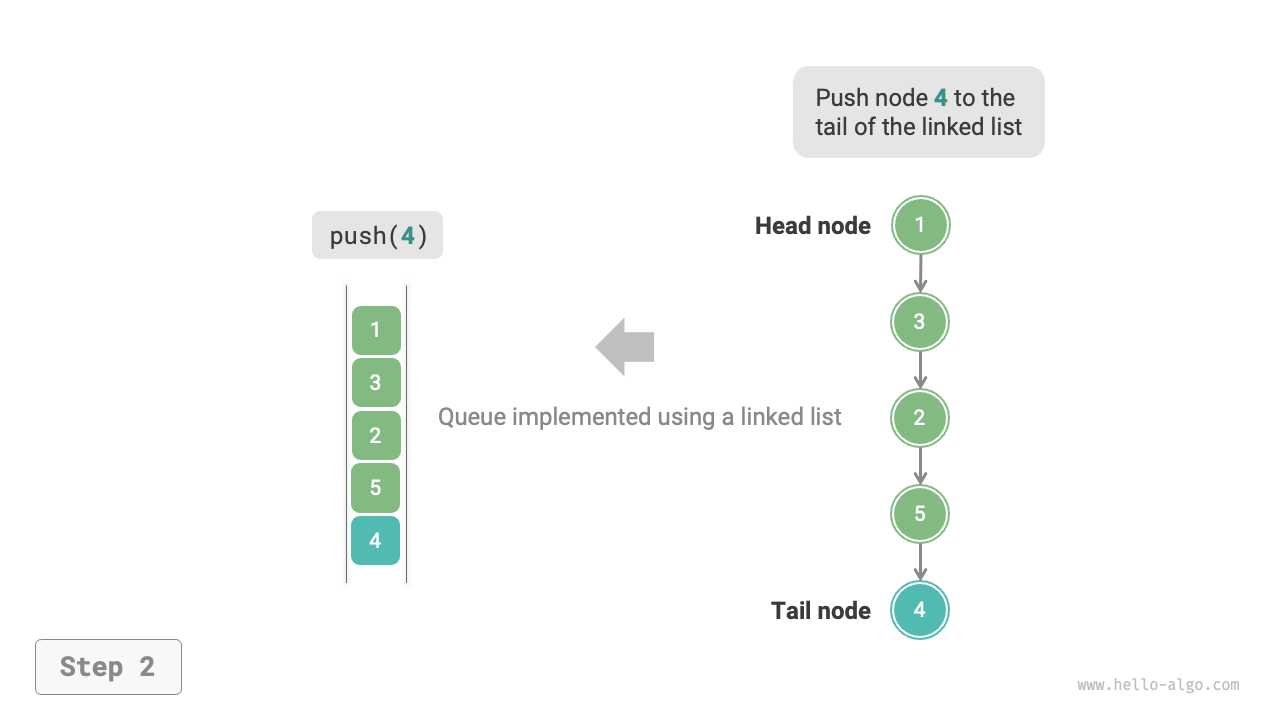

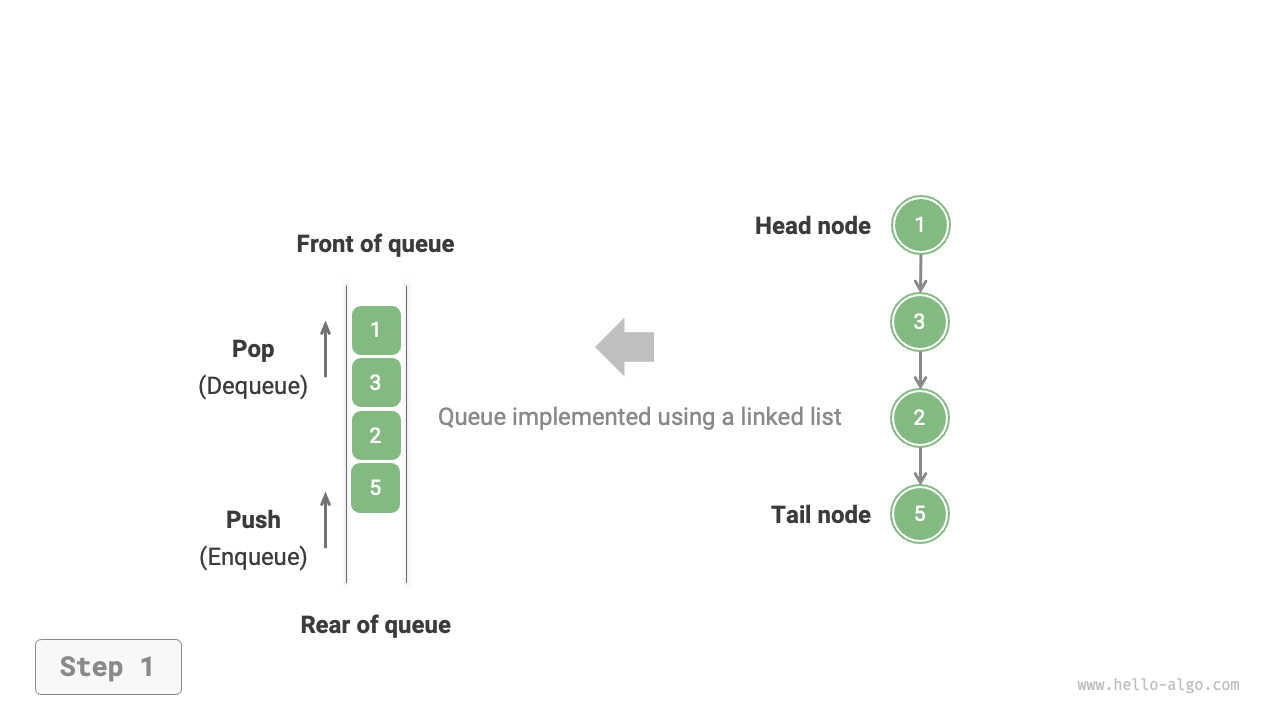

Figure 5-5 Enqueue and dequeue in a linked-list queue
Here is an implementation using a linked list:
linkedlist_queue.py
class LinkedListQueue:
"""Queue implemented with a linked list"""
def __init__(self):
"""Constructor"""
self._front: ListNode | None = None # Head node front
self._rear: ListNode | None = None # Tail node rear
self._size: int = 0
def size(self) -> int:
"""Get the queue size"""
return self._size
def is_empty(self) -> bool:
"""Check whether the queue is empty"""
return self._size == 0
def push(self, num: int):
"""Enqueue"""
# Add num after the tail node
node = ListNode(num)
# If the queue is empty, make both the head and tail point to this node
if self._front is None:
self._front = node
self._rear = node
# If the queue is not empty, add this node after the tail node
else:
self._rear.next = node
self._rear = node
self._size += 1
def pop(self) -> int:
"""Dequeue"""
num = self.peek()
# Remove the head node
self._front = self._front.next
self._size -= 1
return num
def peek(self) -> int:
"""Access the front element"""
if self.is_empty():
raise IndexError("Queue is empty")
return self._front.val
def to_list(self) -> list[int]:
"""Convert to a list for printing"""
queue = []
temp = self._front
while temp:
queue.append(temp.val)
temp = temp.next
return queue
linkedlist_queue.cpp
/* Queue implemented with a linked list */
class LinkedListQueue {
private:
ListNode *front, *rear; // Head node front and tail node rear
int queSize;
public:
LinkedListQueue() {
front = nullptr;
rear = nullptr;
queSize = 0;
}
~LinkedListQueue() {
// Traverse the linked list and delete each node to free its memory
freeMemoryLinkedList(front);
}
/* Get the queue size */
int size() {
return queSize;
}
/* Check whether the queue is empty */
bool isEmpty() {
return queSize == 0;
}
/* Enqueue */
void push(int num) {
// Add num after the tail node
ListNode *node = new ListNode(num);
// If the queue is empty, make both the head and tail point to this node
if (front == nullptr) {
front = node;
rear = node;
}
// If the queue is not empty, add this node after the tail node
else {
rear->next = node;
rear = node;
}
queSize++;
}
/* Dequeue */
int pop() {
int num = peek();
// Remove the head node
ListNode *tmp = front;
front = front->next;
// Free memory
delete tmp;
queSize--;
return num;
}
/* Access the front element */
int peek() {
if (size() == 0)
throw out_of_range("Queue is empty");
return front->val;
}
/* Convert the linked list to a vector and return it */
vector<int> toVector() {
ListNode *node = front;
vector<int> res(size());
for (int i = 0; i < res.size(); i++) {
res[i] = node->val;
node = node->next;
}
return res;
}
};
linkedlist_queue.java
/* Queue implemented with a linked list */
class LinkedListQueue {
private ListNode front, rear; // Head node front and tail node rear
private int queSize = 0;
public LinkedListQueue() {
front = null;
rear = null;
}
/* Get the queue size */
public int size() {
return queSize;
}
/* Check whether the queue is empty */
public boolean isEmpty() {
return size() == 0;
}
/* Enqueue */
public void push(int num) {
// Add num after the tail node
ListNode node = new ListNode(num);
// If the queue is empty, make both the head and tail point to this node
if (front == null) {
front = node;
rear = node;
// If the queue is not empty, add this node after the tail node
} else {
rear.next = node;
rear = node;
}
queSize++;
}
/* Dequeue */
public int pop() {
int num = peek();
// Remove the head node
front = front.next;
queSize--;
return num;
}
/* Access the front element */
public int peek() {
if (isEmpty())
throw new IndexOutOfBoundsException();
return front.val;
}
/* Convert the linked list to an array and return it */
public int[] toArray() {
ListNode node = front;
int[] res = new int[size()];
for (int i = 0; i < res.length; i++) {
res[i] = node.val;
node = node.next;
}
return res;
}
}
linkedlist_queue.cs
/* Queue implemented with a linked list */
class LinkedListQueue {
ListNode? front, rear; // Head node front and tail node rear
int queSize = 0;
public LinkedListQueue() {
front = null;
rear = null;
}
/* Get the queue size */
public int Size() {
return queSize;
}
/* Check whether the queue is empty */
public bool IsEmpty() {
return Size() == 0;
}
/* Enqueue */
public void Push(int num) {
// Add num after the tail node
ListNode node = new(num);
// If the queue is empty, make both the head and tail point to this node
if (front == null) {
front = node;
rear = node;
// If the queue is not empty, add this node after the tail node
} else if (rear != null) {
rear.next = node;
rear = node;
}
queSize++;
}
/* Dequeue */
public int Pop() {
int num = Peek();
// Remove the head node
front = front?.next;
queSize--;
return num;
}
/* Access the front element */
public int Peek() {
if (IsEmpty())
throw new Exception();
return front!.val;
}
/* Convert the linked list to an array and return it */
public int[] ToArray() {
if (front == null)
return [];
ListNode? node = front;
int[] res = new int[Size()];
for (int i = 0; i < res.Length; i++) {
res[i] = node!.val;
node = node.next;
}
return res;
}
}
linkedlist_queue.go
/* Queue implemented with a linked list */
type linkedListQueue struct {
// Use the standard library list package to implement the queue
data *list.List
}
/* Initialize the queue */
func newLinkedListQueue() *linkedListQueue {
return &linkedListQueue{
data: list.New(),
}
}
/* Enqueue */
func (s *linkedListQueue) push(value any) {
s.data.PushBack(value)
}
/* Dequeue */
func (s *linkedListQueue) pop() any {
if s.isEmpty() {
return nil
}
e := s.data.Front()
s.data.Remove(e)
return e.Value
}
/* Access the front element */
func (s *linkedListQueue) peek() any {
if s.isEmpty() {
return nil
}
e := s.data.Front()
return e.Value
}
/* Get the queue size */
func (s *linkedListQueue) size() int {
return s.data.Len()
}
/* Check whether the queue is empty */
func (s *linkedListQueue) isEmpty() bool {
return s.data.Len() == 0
}
/* Get the list for printing */
func (s *linkedListQueue) toList() *list.List {
return s.data
}
linkedlist_queue.swift
/* Queue implemented with a linked list */
class LinkedListQueue {
private var front: ListNode? // Head node
private var rear: ListNode? // Tail node
private var _size: Int
init() {
_size = 0
}
/* Get the queue size */
func size() -> Int {
_size
}
/* Check whether the queue is empty */
func isEmpty() -> Bool {
size() == 0
}
/* Enqueue */
func push(num: Int) {
// Add num after the tail node
let node = ListNode(x: num)
// If the queue is empty, make both the head and tail point to this node
if front == nil {
front = node
rear = node
}
// If the queue is not empty, add this node after the tail node
else {
rear?.next = node
rear = node
}
_size += 1
}
/* Dequeue */
@discardableResult
func pop() -> Int {
let num = peek()
// Remove the head node
front = front?.next
_size -= 1
return num
}
/* Access the front element */
func peek() -> Int {
if isEmpty() {
fatalError("Queue is empty")
}
return front!.val
}
/* Convert the linked list to an array and return it */
func toArray() -> [Int] {
var node = front
var res = Array(repeating: 0, count: size())
for i in res.indices {
res[i] = node!.val
node = node?.next
}
return res
}
}
linkedlist_queue.js
/* Queue implemented with a linked list */
class LinkedListQueue {
#front; // Head node #front
#rear; // Tail node #rear
#queSize = 0;
constructor() {
this.#front = null;
this.#rear = null;
}
/* Get the queue size */
get size() {
return this.#queSize;
}
/* Check whether the queue is empty */
isEmpty() {
return this.size === 0;
}
/* Enqueue */
push(num) {
// Add num after the tail node
const node = new ListNode(num);
// If the queue is empty, make both the head and tail point to this node
if (!this.#front) {
this.#front = node;
this.#rear = node;
// If the queue is not empty, add this node after the tail node
} else {
this.#rear.next = node;
this.#rear = node;
}
this.#queSize++;
}
/* Dequeue */
pop() {
const num = this.peek();
// Remove the head node
this.#front = this.#front.next;
this.#queSize--;
return num;
}
/* Access the front element */
peek() {
if (this.size === 0) throw new Error('Queue is empty');
return this.#front.val;
}
/* Convert the linked list to an Array and return it */
toArray() {
let node = this.#front;
const res = new Array(this.size);
for (let i = 0; i < res.length; i++) {
res[i] = node.val;
node = node.next;
}
return res;
}
}
linkedlist_queue.ts
/* Queue implemented with a linked list */
class LinkedListQueue {
private front: ListNode | null; // Head node front
private rear: ListNode | null; // Tail node rear
private queSize: number = 0;
constructor() {
this.front = null;
this.rear = null;
}
/* Get the queue size */
get size(): number {
return this.queSize;
}
/* Check whether the queue is empty */
isEmpty(): boolean {
return this.size === 0;
}
/* Enqueue */
push(num: number): void {
// Add num after the tail node
const node = new ListNode(num);
// If the queue is empty, make both the head and tail point to this node
if (!this.front) {
this.front = node;
this.rear = node;
// If the queue is not empty, add this node after the tail node
} else {
this.rear!.next = node;
this.rear = node;
}
this.queSize++;
}
/* Dequeue */
pop(): number {
const num = this.peek();
if (!this.front) throw new Error('Queue is empty');
// Remove the head node
this.front = this.front.next;
this.queSize--;
return num;
}
/* Access the front element */
peek(): number {
if (this.size === 0) throw new Error('Queue is empty');
return this.front!.val;
}
/* Convert the linked list to an Array and return it */
toArray(): number[] {
let node = this.front;
const res = new Array<number>(this.size);
for (let i = 0; i < res.length; i++) {
res[i] = node!.val;
node = node!.next;
}
return res;
}
}
linkedlist_queue.dart
/* Queue implemented with a linked list */
class LinkedListQueue {
ListNode? _front; // Head node _front
ListNode? _rear; // Tail node _rear
int _queSize = 0; // Queue size
LinkedListQueue() {
_front = null;
_rear = null;
}
/* Get the queue size */
int size() {
return _queSize;
}
/* Check whether the queue is empty */
bool isEmpty() {
return _queSize == 0;
}
/* Enqueue */
void push(int _num) {
// Add _num after the tail node
final node = ListNode(_num);
// If the queue is empty, make both the head and tail point to this node
if (_front == null) {
_front = node;
_rear = node;
} else {
// If the queue is not empty, add this node after the tail node
_rear!.next = node;
_rear = node;
}
_queSize++;
}
/* Dequeue */
int pop() {
final int _num = peek();
// Remove the head node
_front = _front!.next;
_queSize--;
return _num;
}
/* Access the front element */
int peek() {
if (_queSize == 0) {
throw Exception('Queue is empty');
}
return _front!.val;
}
/* Convert the linked list to an array and return it */
List<int> toArray() {
ListNode? node = _front;
final List<int> queue = [];
while (node != null) {
queue.add(node.val);
node = node.next;
}
return queue;
}
}
linkedlist_queue.rs
/* Queue implemented with a linked list */
#[allow(dead_code)]
pub struct LinkedListQueue<T> {
front: Option<Rc<RefCell<ListNode<T>>>>, // Head node front
rear: Option<Rc<RefCell<ListNode<T>>>>, // Tail node rear
que_size: usize, // Queue size
}
impl<T: Copy> LinkedListQueue<T> {
pub fn new() -> Self {
Self {
front: None,
rear: None,
que_size: 0,
}
}
/* Get the queue size */
pub fn size(&self) -> usize {
return self.que_size;
}
/* Check whether the queue is empty */
pub fn is_empty(&self) -> bool {
return self.que_size == 0;
}
/* Enqueue */
pub fn push(&mut self, num: T) {
// Add num after the tail node
let new_rear = ListNode::new(num);
match self.rear.take() {
// If the queue is not empty, add this node after the tail node
Some(old_rear) => {
old_rear.borrow_mut().next = Some(new_rear.clone());
self.rear = Some(new_rear);
}
// If the queue is empty, make both the head and tail point to this node
None => {
self.front = Some(new_rear.clone());
self.rear = Some(new_rear);
}
}
self.que_size += 1;
}
/* Dequeue */
pub fn pop(&mut self) -> Option<T> {
self.front.take().map(|old_front| {
match old_front.borrow_mut().next.take() {
Some(new_front) => {
self.front = Some(new_front);
}
None => {
self.rear.take();
}
}
self.que_size -= 1;
old_front.borrow().val
})
}
/* Access the front element */
pub fn peek(&self) -> Option<&Rc<RefCell<ListNode<T>>>> {
self.front.as_ref()
}
/* Convert the linked list to a vector and return it */
pub fn to_array(&self, head: Option<&Rc<RefCell<ListNode<T>>>>) -> Vec<T> {
let mut res: Vec<T> = Vec::new();
fn recur<T: Copy>(cur: Option<&Rc<RefCell<ListNode<T>>>>, res: &mut Vec<T>) {
if let Some(cur) = cur {
res.push(cur.borrow().val);
recur(cur.borrow().next.as_ref(), res);
}
}
recur(head, &mut res);
res
}
}
linkedlist_queue.c
/* Queue implemented with a linked list */
typedef struct {
ListNode *front, *rear;
int queSize;
} LinkedListQueue;
/* Constructor */
LinkedListQueue *newLinkedListQueue() {
LinkedListQueue *queue = (LinkedListQueue *)malloc(sizeof(LinkedListQueue));
queue->front = NULL;
queue->rear = NULL;
queue->queSize = 0;
return queue;
}
/* Destructor */
void delLinkedListQueue(LinkedListQueue *queue) {
// Free all nodes
while (queue->front != NULL) {
ListNode *tmp = queue->front;
queue->front = queue->front->next;
free(tmp);
}
// Free the queue structure
free(queue);
}
/* Get the queue size */
int size(LinkedListQueue *queue) {
return queue->queSize;
}
/* Check whether the queue is empty */
bool empty(LinkedListQueue *queue) {
return (size(queue) == 0);
}
/* Enqueue */
void push(LinkedListQueue *queue, int num) {
// Add node at the tail
ListNode *node = newListNode(num);
// If the queue is empty, make both the head and tail point to this node
if (queue->front == NULL) {
queue->front = node;
queue->rear = node;
}
// If the queue is not empty, add this node after the tail node
else {
queue->rear->next = node;
queue->rear = node;
}
queue->queSize++;
}
/* Access the front element */
int peek(LinkedListQueue *queue) {
assert(size(queue) && queue->front);
return queue->front->val;
}
/* Dequeue */
int pop(LinkedListQueue *queue) {
int num = peek(queue);
ListNode *tmp = queue->front;
queue->front = queue->front->next;
free(tmp);
queue->queSize--;
return num;
}
/* Print the queue */
void printLinkedListQueue(LinkedListQueue *queue) {
int *arr = malloc(sizeof(int) * queue->queSize);
// Copy the linked list data into an array
int i;
ListNode *node;
for (i = 0, node = queue->front; i < queue->queSize; i++) {
arr[i] = node->val;
node = node->next;
}
printArray(arr, queue->queSize);
free(arr);
}
linkedlist_queue.kt
/* Queue implemented with a linked list */
class LinkedListQueue(
// Head node front and tail node rear
private var front: ListNode? = null,
private var rear: ListNode? = null,
private var queSize: Int = 0
) {
/* Get the queue size */
fun size(): Int {
return queSize
}
/* Check whether the queue is empty */
fun isEmpty(): Boolean {
return size() == 0
}
/* Enqueue */
fun push(num: Int) {
// Add num after the tail node
val node = ListNode(num)
// If the queue is empty, make both the head and tail point to this node
if (front == null) {
front = node
rear = node
// If the queue is not empty, add this node after the tail node
} else {
rear?.next = node
rear = node
}
queSize++
}
/* Dequeue */
fun pop(): Int {
val num = peek()
// Remove the head node
front = front?.next
queSize--
return num
}
/* Access the front element */
fun peek(): Int {
if (isEmpty()) throw IndexOutOfBoundsException()
return front!!._val
}
/* Convert the linked list to an array and return it */
fun toArray(): IntArray {
var node = front
val res = IntArray(size())
for (i in res.indices) {
res[i] = node!!._val
node = node.next
}
return res
}
}
linkedlist_queue.rb
### Queue implemented with a linked list ###
class LinkedListQueue
### Get the queue size ###
attr_reader :size
### Constructor ###
def initialize
@front = nil # Head node front
@rear = nil # Tail node rear
@size = 0
end
### Check whether the queue is empty ###
def is_empty?
@front.nil?
end
### Enqueue ###
def push(num)
# Add num after the tail node
node = ListNode.new(num)
# If the queue is empty, point both the head and tail to this node
if @front.nil?
@front = node
@rear = node
# If the queue is not empty, append this node after the tail
else
@rear.next = node
@rear = node
end
@size += 1
end
### Dequeue ###
def pop
num = peek
# Remove the head node
@front = @front.next
@size -= 1
num
end
### Access the front element ###
def peek
raise IndexError, 'Queue is empty' if is_empty?
@front.val
end
### Convert the linked list to an Array and return it ###
def to_array
queue = []
temp = @front
while temp
queue << temp.val
temp = temp.next
end
queue
end
end
Visualize execution
2. Implementation with an array¶
Removing the first element of an array takes \(O(n)\) time, which would make dequeueing inefficient. A useful technique avoids this problem.
Use a variable front for the index of the front element and a variable size for the queue's length. Define rear = front + size, so rear points to the position immediately after the last element.
With this design, the occupied interval is [front, rear - 1]. Operations work as shown below.
- Enqueue: assign the new element to index
rearand increasesizeby 1. - Dequeue: increase
frontby 1 and decreasesizeby 1.
Both operations require only a constant amount of work and take \(O(1)\) time.

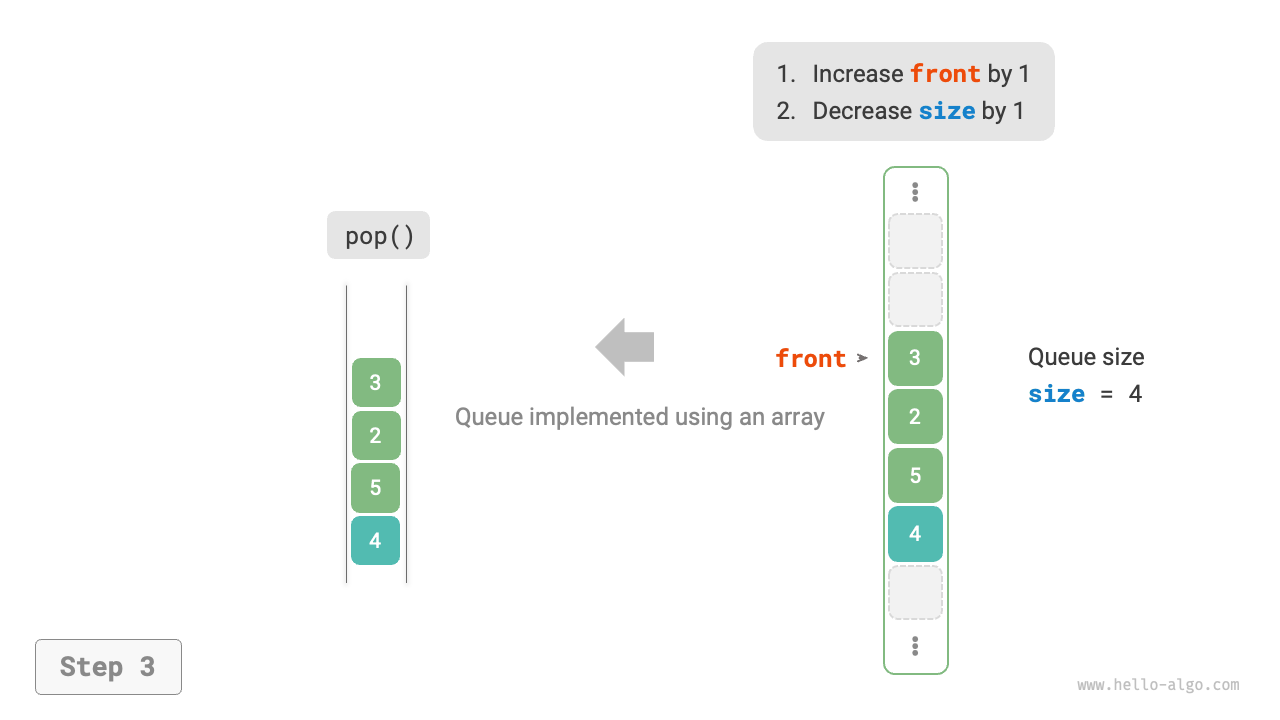

Figure 5-6 Enqueue and dequeue in an array-based queue
There is a problem: repeated enqueueing and dequeueing move both front and rear to the right, and they cannot continue once they reach the end of the array. To solve this, treat the array as circular, with its end connected to its beginning.
When front or rear passes the array's end, wrap it back to the beginning. The remainder operation implements this cyclic behavior:
array_queue.py
class ArrayQueue:
"""Queue implemented with a circular array"""
def __init__(self, size: int):
"""Constructor"""
self._nums: list[int] = [0] * size # Array that stores the queue elements
self._front: int = 0 # Front pointer, pointing to the first element
self._size: int = 0 # Queue size
def capacity(self) -> int:
"""Get the queue capacity"""
return len(self._nums)
def size(self) -> int:
"""Get the queue size"""
return self._size
def is_empty(self) -> bool:
"""Check whether the queue is empty"""
return self._size == 0
def push(self, num: int):
"""Enqueue"""
if self._size == self.capacity():
raise IndexError("Queue is full")
# Calculate the rear pointer, which points one position past the last element
# Use modulo to wrap rear to the beginning when it passes the end of the array
rear: int = (self._front + self._size) % self.capacity()
# Add num to the rear
self._nums[rear] = num
self._size += 1
def pop(self) -> int:
"""Dequeue"""
num: int = self.peek()
# Advance the front pointer by one position, wrapping to the beginning if it passes the end
self._front = (self._front + 1) % self.capacity()
self._size -= 1
return num
def peek(self) -> int:
"""Access the front element"""
if self.is_empty():
raise IndexError("Queue is empty")
return self._nums[self._front]
def to_list(self) -> list[int]:
"""Return a list for printing"""
res = [0] * self.size()
j: int = self._front
for i in range(self.size()):
res[i] = self._nums[(j % self.capacity())]
j += 1
return res
array_queue.cpp
/* Queue implemented with a circular array */
class ArrayQueue {
private:
int *nums; // Array that stores the queue elements
int front; // Front index, identifying the first element
int queSize; // Queue size
int queCapacity; // Queue capacity
public:
ArrayQueue(int capacity) {
// Initialize the array
nums = new int[capacity];
queCapacity = capacity;
front = queSize = 0;
}
~ArrayQueue() {
delete[] nums;
}
/* Get the queue capacity */
int capacity() {
return queCapacity;
}
/* Get the queue size */
int size() {
return queSize;
}
/* Check whether the queue is empty */
bool isEmpty() {
return size() == 0;
}
/* Enqueue */
void push(int num) {
if (queSize == queCapacity) {
cout << "Queue is full" << endl;
return;
}
// Calculate the rear index, one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
int rear = (front + queSize) % queCapacity;
// Add num to the rear
nums[rear] = num;
queSize++;
}
/* Dequeue */
int pop() {
int num = peek();
// Advance the front index by one position, wrapping to the beginning if it passes the end
front = (front + 1) % queCapacity;
queSize--;
return num;
}
/* Access the front element */
int peek() {
if (isEmpty())
throw out_of_range("Queue is empty");
return nums[front];
}
/* Convert the array to a vector and return it */
vector<int> toVector() {
// Copy only the elements in the occupied range
vector<int> arr(queSize);
for (int i = 0, j = front; i < queSize; i++, j++) {
arr[i] = nums[j % queCapacity];
}
return arr;
}
};
array_queue.java
/* Queue implemented with a circular array */
class ArrayQueue {
private int[] nums; // Array that stores the queue elements
private int front; // Front pointer, pointing to the first element
private int queSize; // Queue size
public ArrayQueue(int capacity) {
nums = new int[capacity];
front = queSize = 0;
}
/* Get the queue capacity */
public int capacity() {
return nums.length;
}
/* Get the queue size */
public int size() {
return queSize;
}
/* Check whether the queue is empty */
public boolean isEmpty() {
return queSize == 0;
}
/* Enqueue */
public void push(int num) {
if (queSize == capacity()) {
System.out.println("Queue is full");
return;
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
int rear = (front + queSize) % capacity();
// Add num to the rear
nums[rear] = num;
queSize++;
}
/* Dequeue */
public int pop() {
int num = peek();
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
front = (front + 1) % capacity();
queSize--;
return num;
}
/* Access the front element */
public int peek() {
if (isEmpty())
throw new IndexOutOfBoundsException();
return nums[front];
}
/* Return an array */
public int[] toArray() {
// Convert only the list elements within the occupied range
int[] res = new int[queSize];
for (int i = 0, j = front; i < queSize; i++, j++) {
res[i] = nums[j % capacity()];
}
return res;
}
}
array_queue.cs
/* Queue implemented with a circular array */
class ArrayQueue {
int[] nums; // Array that stores the queue elements
int front; // Front pointer, pointing to the first element
int queSize; // Queue size
public ArrayQueue(int capacity) {
nums = new int[capacity];
front = queSize = 0;
}
/* Get the queue capacity */
int Capacity() {
return nums.Length;
}
/* Get the queue size */
public int Size() {
return queSize;
}
/* Check whether the queue is empty */
public bool IsEmpty() {
return queSize == 0;
}
/* Enqueue */
public void Push(int num) {
if (queSize == Capacity()) {
Console.WriteLine("Queue is full");
return;
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
int rear = (front + queSize) % Capacity();
// Add num to the rear
nums[rear] = num;
queSize++;
}
/* Dequeue */
public int Pop() {
int num = Peek();
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
front = (front + 1) % Capacity();
queSize--;
return num;
}
/* Access the front element */
public int Peek() {
if (IsEmpty())
throw new Exception();
return nums[front];
}
/* Return an array */
public int[] ToArray() {
// Copy only the elements within the occupied range
int[] res = new int[queSize];
for (int i = 0, j = front; i < queSize; i++, j++) {
res[i] = nums[j % this.Capacity()];
}
return res;
}
}
array_queue.go
/* Queue implemented with a circular array */
type arrayQueue struct {
nums []int // Array that stores the queue elements
front int // Front pointer, pointing to the first element
queSize int // Queue size
queCapacity int // Queue capacity (the maximum number of elements)
}
/* Initialize the queue */
func newArrayQueue(queCapacity int) *arrayQueue {
return &arrayQueue{
nums: make([]int, queCapacity),
queCapacity: queCapacity,
front: 0,
queSize: 0,
}
}
/* Get the queue size */
func (q *arrayQueue) size() int {
return q.queSize
}
/* Check whether the queue is empty */
func (q *arrayQueue) isEmpty() bool {
return q.queSize == 0
}
/* Enqueue */
func (q *arrayQueue) push(num int) {
// The queue is full when queSize == queCapacity
if q.queSize == q.queCapacity {
return
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
rear := (q.front + q.queSize) % q.queCapacity
// Add num to the rear
q.nums[rear] = num
q.queSize++
}
/* Dequeue */
func (q *arrayQueue) pop() any {
num := q.peek()
if num == nil {
return nil
}
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
q.front = (q.front + 1) % q.queCapacity
q.queSize--
return num
}
/* Access the front element */
func (q *arrayQueue) peek() any {
if q.isEmpty() {
return nil
}
return q.nums[q.front]
}
/* Get a slice for printing */
func (q *arrayQueue) toSlice() []int {
rear := (q.front + q.queSize)
if rear >= q.queCapacity {
rear %= q.queCapacity
return append(q.nums[q.front:], q.nums[:rear]...)
}
return q.nums[q.front:rear]
}
array_queue.swift
/* Queue implemented with a circular array */
class ArrayQueue {
private var nums: [Int] // Array that stores the queue elements
private var front: Int // Front index, identifying the first element
private var _size: Int // Queue size
init(capacity: Int) {
// Initialize the array
nums = Array(repeating: 0, count: capacity)
front = 0
_size = 0
}
/* Get the queue capacity */
func capacity() -> Int {
nums.count
}
/* Get the queue size */
func size() -> Int {
_size
}
/* Check whether the queue is empty */
func isEmpty() -> Bool {
size() == 0
}
/* Enqueue */
func push(num: Int) {
if size() == capacity() {
print("Queue is full")
return
}
// Calculate the rear index, one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
let rear = (front + size()) % capacity()
// Add num to the rear
nums[rear] = num
_size += 1
}
/* Dequeue */
@discardableResult
func pop() -> Int {
let num = peek()
// Advance the front index by one position, wrapping to the beginning if it passes the end
front = (front + 1) % capacity()
_size -= 1
return num
}
/* Access the front element */
func peek() -> Int {
if isEmpty() {
fatalError("Queue is empty")
}
return nums[front]
}
/* Return an array */
func toArray() -> [Int] {
// Include only the elements in the occupied range
(front ..< front + size()).map { nums[$0 % capacity()] }
}
}
array_queue.js
/* Queue implemented with a circular array */
class ArrayQueue {
#nums; // Array that stores the queue elements
#front = 0; // Front pointer, pointing to the first element
#queSize = 0; // Queue size
constructor(capacity) {
this.#nums = new Array(capacity);
}
/* Get the queue capacity */
get capacity() {
return this.#nums.length;
}
/* Get the queue size */
get size() {
return this.#queSize;
}
/* Check whether the queue is empty */
isEmpty() {
return this.#queSize === 0;
}
/* Enqueue */
push(num) {
if (this.size === this.capacity) {
console.log('Queue is full');
return;
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
const rear = (this.#front + this.size) % this.capacity;
// Add num to the rear
this.#nums[rear] = num;
this.#queSize++;
}
/* Dequeue */
pop() {
const num = this.peek();
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
this.#front = (this.#front + 1) % this.capacity;
this.#queSize--;
return num;
}
/* Access the front element */
peek() {
if (this.isEmpty()) throw new Error('Queue is empty');
return this.#nums[this.#front];
}
/* Return an Array */
toArray() {
// Convert only the list elements within the occupied range
const arr = new Array(this.size);
for (let i = 0, j = this.#front; i < this.size; i++, j++) {
arr[i] = this.#nums[j % this.capacity];
}
return arr;
}
}
array_queue.ts
/* Queue implemented with a circular array */
class ArrayQueue {
private nums: number[]; // Array that stores the queue elements
private front: number; // Front pointer, pointing to the first element
private queSize: number; // Queue size
constructor(capacity: number) {
this.nums = new Array(capacity);
this.front = this.queSize = 0;
}
/* Get the queue capacity */
get capacity(): number {
return this.nums.length;
}
/* Get the queue size */
get size(): number {
return this.queSize;
}
/* Check whether the queue is empty */
isEmpty(): boolean {
return this.queSize === 0;
}
/* Enqueue */
push(num: number): void {
if (this.size === this.capacity) {
console.log('Queue is full');
return;
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
const rear = (this.front + this.queSize) % this.capacity;
// Add num to the rear
this.nums[rear] = num;
this.queSize++;
}
/* Dequeue */
pop(): number {
const num = this.peek();
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
this.front = (this.front + 1) % this.capacity;
this.queSize--;
return num;
}
/* Access the front element */
peek(): number {
if (this.isEmpty()) throw new Error('Queue is empty');
return this.nums[this.front];
}
/* Return an Array */
toArray(): number[] {
// Convert only the list elements within the occupied range
const arr = new Array(this.size);
for (let i = 0, j = this.front; i < this.size; i++, j++) {
arr[i] = this.nums[j % this.capacity];
}
return arr;
}
}
array_queue.dart
/* Queue implemented with a circular array */
class ArrayQueue {
late List<int> _nums; // Array that stores the queue elements
late int _front; // Front pointer, pointing to the first element
late int _queSize; // Queue size
ArrayQueue(int capacity) {
_nums = List.filled(capacity, 0);
_front = _queSize = 0;
}
/* Get the queue capacity */
int capaCity() {
return _nums.length;
}
/* Get the queue size */
int size() {
return _queSize;
}
/* Check whether the queue is empty */
bool isEmpty() {
return _queSize == 0;
}
/* Enqueue */
void push(int _num) {
if (_queSize == capaCity()) {
throw Exception("Queue is full");
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
int rear = (_front + _queSize) % capaCity();
// Add _num to the rear
_nums[rear] = _num;
_queSize++;
}
/* Dequeue */
int pop() {
int _num = peek();
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
_front = (_front + 1) % capaCity();
_queSize--;
return _num;
}
/* Access the front element */
int peek() {
if (isEmpty()) {
throw Exception("Queue is empty");
}
return _nums[_front];
}
/* Return an array */
List<int> toArray() {
// Convert only the list elements within the occupied range
final List<int> res = List.filled(_queSize, 0);
for (int i = 0, j = _front; i < _queSize; i++, j++) {
res[i] = _nums[j % capaCity()];
}
return res;
}
}
array_queue.rs
/* Queue implemented with a circular array */
struct ArrayQueue<T> {
nums: Vec<T>, // Array that stores the queue elements
front: i32, // Front index, identifying the first element
que_size: i32, // Queue size
que_capacity: i32, // Queue capacity
}
impl<T: Copy + Default> ArrayQueue<T> {
/* Constructor */
fn new(capacity: i32) -> ArrayQueue<T> {
ArrayQueue {
nums: vec![T::default(); capacity as usize],
front: 0,
que_size: 0,
que_capacity: capacity,
}
}
/* Get the queue capacity */
fn capacity(&self) -> i32 {
self.que_capacity
}
/* Get the queue size */
fn size(&self) -> i32 {
self.que_size
}
/* Check whether the queue is empty */
fn is_empty(&self) -> bool {
self.que_size == 0
}
/* Enqueue */
fn push(&mut self, num: T) {
if self.que_size == self.capacity() {
println!("Queue is full");
return;
}
// Calculate the rear index, one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
let rear = (self.front + self.que_size) % self.que_capacity;
// Add num to the rear
self.nums[rear as usize] = num;
self.que_size += 1;
}
/* Dequeue */
fn pop(&mut self) -> T {
let num = self.peek();
// Advance the front index by one position, wrapping to the beginning if it passes the end
self.front = (self.front + 1) % self.que_capacity;
self.que_size -= 1;
num
}
/* Access the front element */
fn peek(&self) -> T {
if self.is_empty() {
panic!("Index out of bounds");
}
self.nums[self.front as usize]
}
/* Return a vector */
fn to_vector(&self) -> Vec<T> {
let cap = self.que_capacity;
let mut j = self.front;
let mut arr = vec![T::default(); cap as usize];
for i in 0..self.que_size {
arr[i as usize] = self.nums[(j % cap) as usize];
j += 1;
}
arr
}
}
array_queue.c
/* Queue implemented with a circular array */
typedef struct {
int *nums; // Array that stores the queue elements
int front; // Front pointer, pointing to the first element
int queSize; // Current number of elements in the queue
int queCapacity; // Queue capacity
} ArrayQueue;
/* Constructor */
ArrayQueue *newArrayQueue(int capacity) {
ArrayQueue *queue = (ArrayQueue *)malloc(sizeof(ArrayQueue));
// Initialize the array
queue->queCapacity = capacity;
queue->nums = (int *)malloc(sizeof(int) * queue->queCapacity);
queue->front = queue->queSize = 0;
return queue;
}
/* Destructor */
void delArrayQueue(ArrayQueue *queue) {
free(queue->nums);
free(queue);
}
/* Get the queue capacity */
int capacity(ArrayQueue *queue) {
return queue->queCapacity;
}
/* Get the queue size */
int size(ArrayQueue *queue) {
return queue->queSize;
}
/* Check whether the queue is empty */
bool empty(ArrayQueue *queue) {
return queue->queSize == 0;
}
/* Access the front element */
int peek(ArrayQueue *queue) {
assert(size(queue) != 0);
return queue->nums[queue->front];
}
/* Enqueue */
void push(ArrayQueue *queue, int num) {
if (size(queue) == capacity(queue)) {
printf("Queue is full\r\n");
return;
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
int rear = (queue->front + queue->queSize) % queue->queCapacity;
// Add num to the rear
queue->nums[rear] = num;
queue->queSize++;
}
/* Dequeue */
int pop(ArrayQueue *queue) {
int num = peek(queue);
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
queue->front = (queue->front + 1) % queue->queCapacity;
queue->queSize--;
return num;
}
/* Return an array for printing */
int *toArray(ArrayQueue *queue, int *queSize) {
*queSize = queue->queSize;
int *res = (int *)calloc(queue->queSize, sizeof(int));
int j = queue->front;
for (int i = 0; i < queue->queSize; i++) {
res[i] = queue->nums[j % queue->queCapacity];
j++;
}
return res;
}
array_queue.kt
/* Queue implemented with a circular array */
class ArrayQueue(capacity: Int) {
private val nums: IntArray = IntArray(capacity) // Array that stores the queue elements
private var front: Int = 0 // Front pointer, pointing to the first element
private var queSize: Int = 0 // Queue size
/* Get the queue capacity */
fun capacity(): Int {
return nums.size
}
/* Get the queue size */
fun size(): Int {
return queSize
}
/* Check whether the queue is empty */
fun isEmpty(): Boolean {
return queSize == 0
}
/* Enqueue */
fun push(num: Int) {
if (queSize == capacity()) {
println("Queue is full")
return
}
// Calculate the rear pointer, which points one position past the last element
// Use modulo to wrap rear to the beginning when it passes the end of the array
val rear = (front + queSize) % capacity()
// Add num to the rear
nums[rear] = num
queSize++
}
/* Dequeue */
fun pop(): Int {
val num = peek()
// Advance the front pointer by one position, wrapping to the beginning if it passes the end
front = (front + 1) % capacity()
queSize--
return num
}
/* Access the front element */
fun peek(): Int {
if (isEmpty()) throw IndexOutOfBoundsException()
return nums[front]
}
/* Return an array */
fun toArray(): IntArray {
// Copy only the elements within the occupied range
val res = IntArray(queSize)
var i = 0
var j = front
while (i < queSize) {
res[i] = nums[j % capacity()]
i++
j++
}
return res
}
}
array_queue.rb
### Queue implemented with a circular array ###
class ArrayQueue
### Get the queue size ###
attr_reader :size
### Constructor ###
def initialize(size)
@nums = Array.new(size, 0) # Array that stores the queue elements
@front = 0 # Front pointer, pointing to the first element
@size = 0 # Queue size
end
### Get the queue capacity ###
def capacity
@nums.length
end
### Check whether the queue is empty ###
def is_empty?
size.zero?
end
### Enqueue ###
def push(num)
raise IndexError, 'Queue is full' if size == capacity
# Calculate the rear pointer, which points one position past the last element
# Use modulo to wrap rear to the beginning when it passes the end of the array
rear = (@front + size) % capacity
# Add num to the rear
@nums[rear] = num
@size += 1
end
### Dequeue ###
def pop
num = peek
# Advance the front pointer by one position, wrapping to the beginning if it passes the end
@front = (@front + 1) % capacity
@size -= 1
num
end
### Access the front element ###
def peek
raise IndexError, 'Queue is empty' if is_empty?
@nums[@front]
end
### Return a list for printing ###
def to_array
res = Array.new(size, 0)
j = @front
for i in 0...size
res[i] = @nums[j % capacity]
j += 1
end
res
end
end
Visualize execution
This queue still has a limitation: its capacity is fixed. We can address it by replacing the array with a dynamic array and adding resizing. Interested readers can try implementing this themselves.
The comparison between these two implementations is the same as for stacks, so we will not repeat it here.
5.2.3 Typical applications¶
- Taobao orders. When a shopper places an order, it enters a queue, and the system processes orders in sequence. During the Singles' Day shopping festival, enormous numbers of orders arrive in a short time, making high concurrency a major engineering challenge.
- Tasks awaiting processing. Queues preserve processing order wherever first-come, first-served behavior is needed, such as printer jobs or restaurant orders.
