# 11.4 Insertion sort¶

__Insertion sort__ is a simple sorting algorithm that works very much like the process of manually sorting a deck of cards.

Specifically, we select a pivot element from the unsorted interval, compare it with the elements in the sorted interval to its left, and insert the element into the correct position.

Figure 11-6 shows the process of inserting an element into an array. Assuming the pivot element is `base`

, we need to move all elements between the target index and `base`

one position to the right, then assign `base`

to the target index.

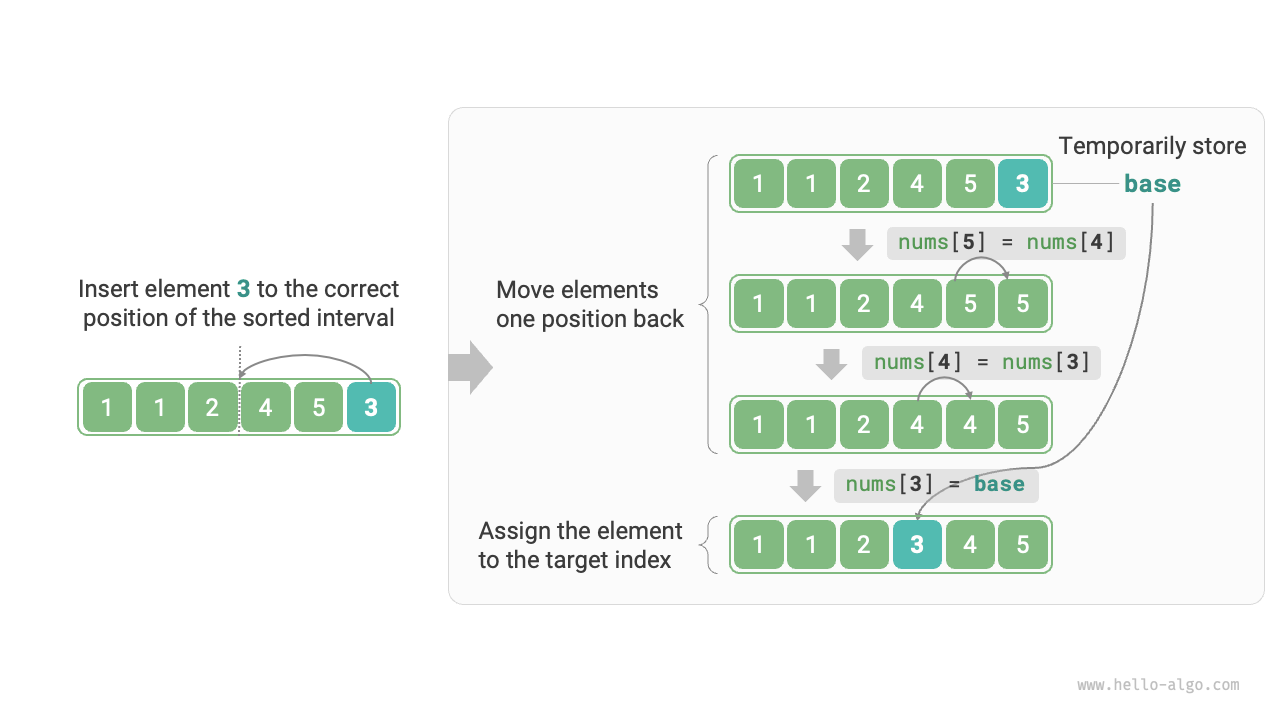

Figure 11-6 Single insertion operation

## 11.4.1 Algorithm process¶

The overall process of insertion sort is shown in Figure 11-7.

- Initially, the first element of the array is sorted.
- The second element of the array is taken as
`base`

, and after inserting it into the correct position,**the first two elements of the array are sorted**. - The third element is taken as
`base`

, and after inserting it into the correct position,**the first three elements of the array are sorted**. - And so on, in the last round, the last element is taken as
`base`

, and after inserting it into the correct position,**all elements are sorted**.

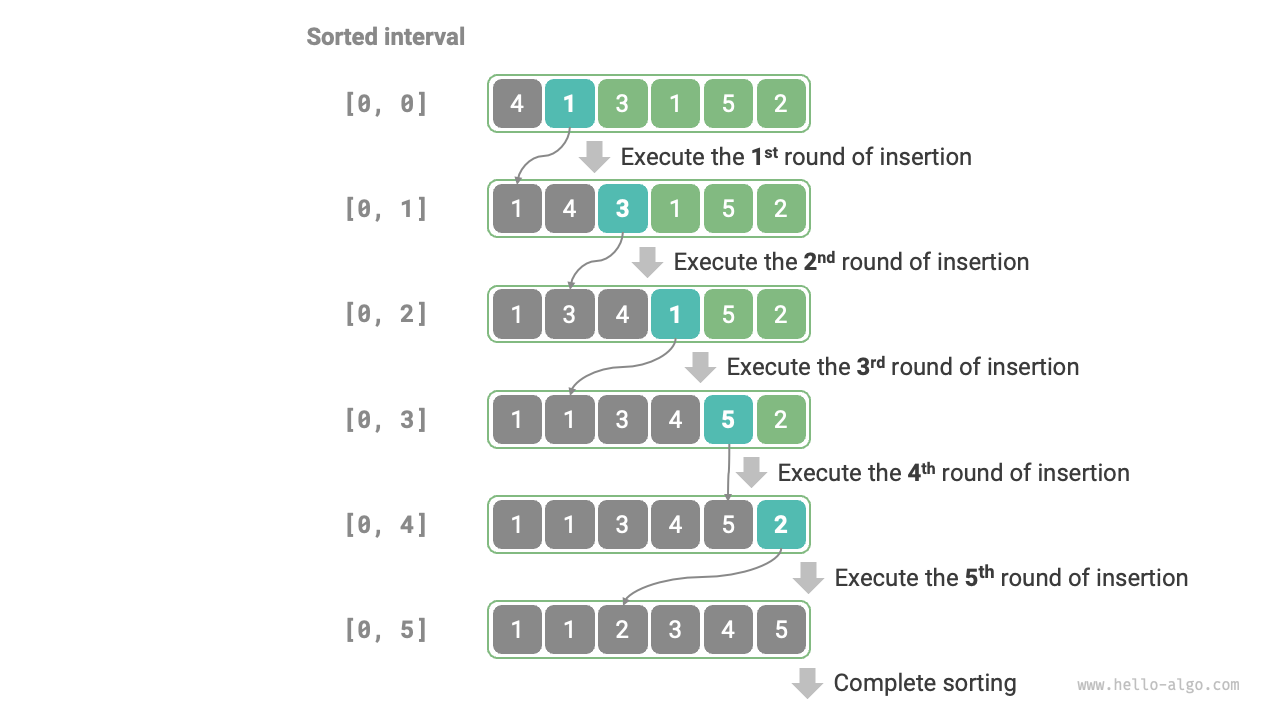

Figure 11-7 Insertion sort process

Example code is as follows:

```
def insertion_sort(nums: list[int]):
"""Insertion sort"""
# Outer loop: sorted range is [0, i-1]
for i in range(1, len(nums)):
base = nums[i]
j = i - 1
# Inner loop: insert base into the correct position within the sorted range [0, i-1]
while j >= 0 and nums[j] > base:
nums[j + 1] = nums[j] # Move nums[j] to the right by one position
j -= 1
nums[j + 1] = base # Assign base to the correct position
```

```
/* Insertion sort */
void insertionSort(vector<int> &nums) {
// Outer loop: sorted range is [0, i-1]
for (int i = 1; i < nums.size(); i++) {
int base = nums[i], j = i - 1;
// Inner loop: insert base into the correct position within the sorted range [0, i-1]
while (j >= 0 && nums[j] > base) {
nums[j + 1] = nums[j]; // Move nums[j] to the right by one position
j--;
}
nums[j + 1] = base; // Assign base to the correct position
}
}
```

```
/* Insertion sort */
void insertionSort(int[] nums) {
// Outer loop: sorted range is [0, i-1]
for (int i = 1; i < nums.length; i++) {
int base = nums[i], j = i - 1;
// Inner loop: insert base into the correct position within the sorted range [0, i-1]
while (j >= 0 && nums[j] > base) {
nums[j + 1] = nums[j]; // Move nums[j] to the right by one position
j--;
}
nums[j + 1] = base; // Assign base to the correct position
}
}
```

## 11.4.2 Algorithm characteristics¶

**Time complexity is \(O(n^2)\), adaptive sorting**: In the worst case, each insertion operation requires \(n - 1\), \(n-2\), ..., \(2\), \(1\) loops, summing up to \((n - 1) n / 2\), thus the time complexity is \(O(n^2)\). In the case of ordered data, the insertion operation will terminate early. When the input array is completely ordered, insertion sort achieves the best time complexity of \(O(n)\).**Space complexity is \(O(1)\), in-place sorting**: Pointers \(i\) and \(j\) use a constant amount of extra space.**Stable sorting**: During the insertion operation, we insert elements to the right of equal elements, not changing their order.

## 11.4.3 Advantages of insertion sort¶

The time complexity of insertion sort is \(O(n^2)\), while the time complexity of quicksort, which we will study next, is \(O(n \log n)\). Although insertion sort has a higher time complexity, **it is usually faster in cases of small data volumes**.

This conclusion is similar to that for linear and binary search. Algorithms like quicksort that have a time complexity of \(O(n \log n)\) and are based on the divide-and-conquer strategy often involve more unit operations. In cases of small data volumes, the numerical values of \(n^2\) and \(n \log n\) are close, and complexity does not dominate, with the number of unit operations per round playing a decisive role.

In fact, many programming languages (such as Java) use insertion sort in their built-in sorting functions. The general approach is: for long arrays, use sorting algorithms based on divide-and-conquer strategies, such as quicksort; for short arrays, use insertion sort directly.

Although bubble sort, selection sort, and insertion sort all have a time complexity of \(O(n^2)\), in practice, **insertion sort is used significantly more frequently than bubble sort and selection sort**, mainly for the following reasons.

- Bubble sort is based on element swapping, which requires the use of a temporary variable, involving 3 unit operations; insertion sort is based on element assignment, requiring only 1 unit operation. Therefore,
**the computational overhead of bubble sort is generally higher than that of insertion sort**. - The time complexity of selection sort is always \(O(n^2)\).
**Given a set of partially ordered data, insertion sort is usually more efficient than selection sort**. - Selection sort is unstable and cannot be applied to multi-level sorting.
